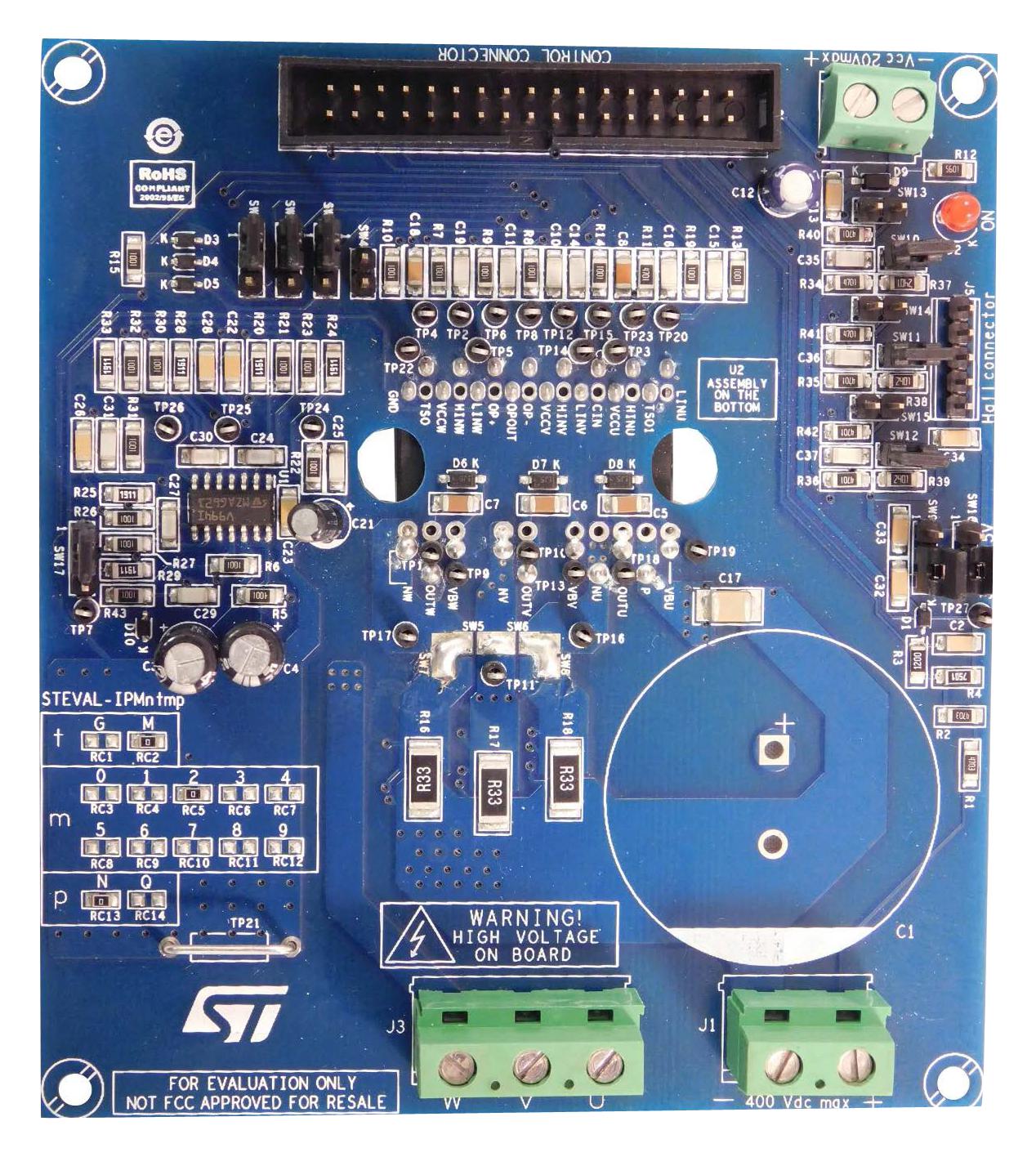

STMICROELECTRONICS STEVALIPMNM2N Motor Control Module
The STEVAL-IPMnM2N is a compact motor control power board based on the SLLIMM-nano series MOSFET modules, designed for high-efficiency motor drives in white goods, HVAC, and inverter applications. It features an integrated interface circuit, multiple current sensing options, overcurrent and temperature protections, and is compatible with ST's STM32 control boards for comprehensive motor management. Its small size, minimal BOM, and flexible configuration make it ideal for both evaluation and practical deployment in various industrial and consumer systems requiring reliable, efficient motor control solutions.
STMICROELECTRONICS STEVALIPMNM2N Motor Control Module Specifications:
- Input voltage: 125 to 400 Vac
- Nominal power: up to 100 W
- Nominal current: up to 1.2 Arms
- Input auxiliary voltage: up to 20 Vac
- MOSFET-based product with integrated protections
- Features: undervoltage lockout, smart shutdown, overcurrent protection, internal temperature sensor
- Supported configurations: single- or three-shunt current sensing
- Interface: connectors for bus, Vcc, motor control, Hall/Encoder inputs
- Small size, minimal BOM, high efficiency design
- Compatible with STM32 control boards for motor control development
- Includes bootstrap capacitors, snubber, fault signal, and temperature monitoring
- RoHS compliant, RoHS compliant
Buy the STMicroelectronics Series SLLIMM-nano Motor Control: STEVAL-IPMnM2N
Enhance your motor control projects with the STMicroelectronics STEVAL-IPMnM2N. This compact, efficient power board offers flexible current sensing options, integrated protection features, and seamless compatibility with STM32 microcontrollers. Ideal for white goods, HVAC, compressors, and inverter systems, it ensures reliable operation with minimal BOM and high performance. Purchase online today to streamline your development, improve system efficiency, and bring robust motor control solutions to your applications effortlessly.
Buy STMicroelectronics STEVAL-IPMnM2N now and experience unmatched reliability and performance in high-efficiency motor control applications.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STEVALIPMNM2N?
You can click on the BUY or RFQ button to purchase STEVALIPMNM2N from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STEVALIPMNM2N?
You can download the STEVALIPMNM2N datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STEVALIPMNM2N?
STMICROELECTRONICS
