STMICROELECTRONICS STM32L562EDK Development Kit

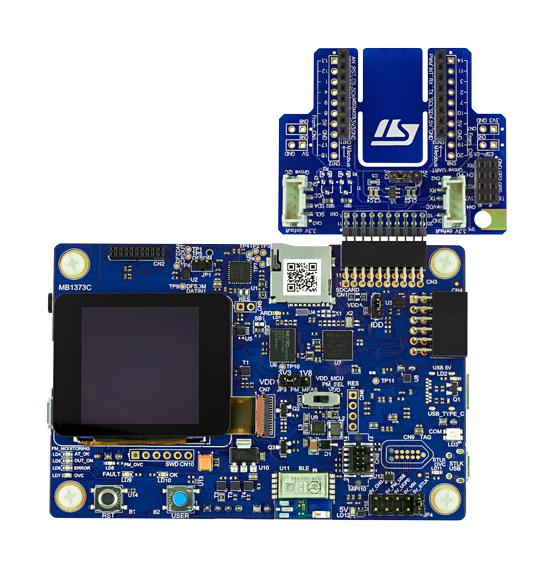

The STM32L562E-DK Discovery Kit is a comprehensive development platform based on the ARM Cortex-M33 core with TrustZone security extension, featuring the STM32L562QEI6QU microcontroller. It includes 512KB of flash memory and 256KB of SRAM, optimized for ultra-low-power applications such as wearables and sensors. The kit offers an onboard ST-Link V3 debugger for programming and debugging, with support for various IDEs like Keil MDK-ARM, IAR EWARM, and GCC-based environments. It features multiple expansion connectors including STMod+ with Wi-Fi, Grove, mikroBUS, Pmod, audio MEMS daughterboard, and Arduino Uno V3 compatibility. Additional features include a 1.54-inch 240x240 pixel color TFT LCD with touchscreen, USB Type-C sink device, an onboard energy meter, SAI audio codec, MEMS microphones, octal SPI flash memory, Bluetooth 4.1 Low Energy module, 3D accelerometer and gyroscope, user LEDs, push-buttons, versatile power options, several I/O interfaces such as microSD card slot, stereo headset jack with microphone input, JTAG debugging, and dynamic power measurement capabilities. The platform comes with extensive software libraries and examples for rapid development.
STMICROELECTRONICS STM32L562EDK Development Kit Specifications:
- Microcontroller: STM32L562QEI6QU with ARM Cortex-M33 core
- Flash Memory: 512 KB
- SRAM: 256 KB
- Display: 1.54 inch 240x240 pixel TFT LCD with touch control
- Connectivity: USB Type-C sink device, Bluetooth 4.1 Low Energy
- Memory: 12-Mbit Octal-SPI Flash
- Audio: SAI Audio CODEC with MEMS microphones
- Sensors: 3D accelerometer and gyroscope
- Indicators: 2 user LEDs, push-buttons
- Expansion: STMod+, Pmod, Grove, mikroBUS, Arduino Uno V3
- Power options: USB Vbus or external supply
- Debugging: On-board STLINK V3 debugger and programmer
- Miscellaneous: microSD card slot, stereo headset jack with microphone, dynamic power measurement interface
- Software: Extensive libraries supporting Keil MDK-ARM, IAR EWARM, GCC IDEs
Buy the Buy STMicroelectronics STM32L562E-DK Part Number STM32L562EDK Online
Get the STM32L562E-DK Discovery Kit online today and accelerate your project development with a comprehensive platform featuring ARM Cortex-M33 core, extensive connectivity options, Touchscreen display, low-power design, and versatile expansion interfaces. Ideal for wearable, sensor, and embedded applications, this kit comes with robust debugging tools and free software libraries, ensuring rapid prototyping and efficient implementation of secure, energy-efficient solutions. Purchase now and enhance your development workflow with this all-in-one embedded system solution.
Buy STMicroelectronics STM32L562EDK now and experience unmatched reliability and performance in ultra-low-power sensor applications.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STM32L562EDK?
You can click on the BUY or RFQ button to purchase STM32L562EDK from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STM32L562EDK?
You can download the STM32L562EDK datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STM32L562EDK?
STMICROELECTRONICS
