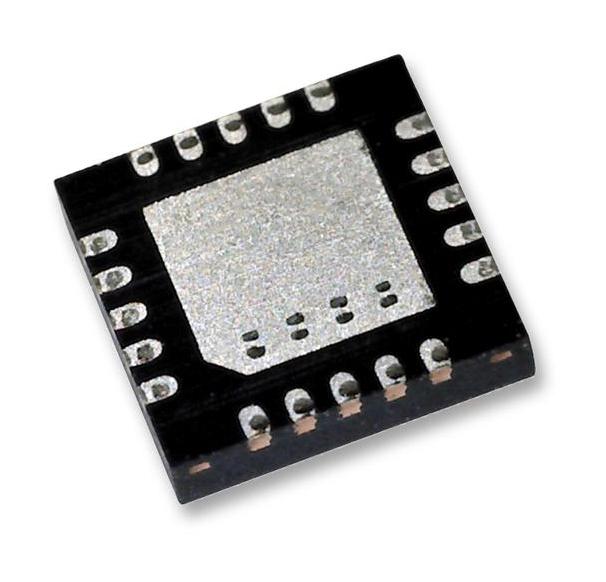

STMICROELECTRONICS LNBH25LPQR Satellite Control IC
The LNBH25L is a satellite LNB control IC with integrated step-up converter, providing 13/18 V power and 22 kHz tone signaling for satellite antennas. It features a complete I2C interface, low power dissipation, and protection diagnostics such as overload and thermal shutdown. Designed for analog and digital satellite receivers, it offers high efficiency with typical 93%, selectable output current limits, and robust surge protection. Its compact QFN24 package simplifies design, enabling reliable, low-noise operation in multi-switch setups and set-top boxes.
STMICROELECTRONICS LNBH25LPQR Satellite Control IC Specifications:
- Package: QFN24 (4 x 4 mm)
- Supply Voltage: 8 V to 16 V
- Vout Output Voltage: 12.545 V to 19.82 V (programmable)
- Input Voltage (Vup): Monitors step-up voltage
- Output Current Limit: up to 750 mA (externally set with resistor)
- Efficiency: Typical 93% @ 0.5 A load
- DC-DC Step-Up Converter: Integrated with soft-start, high efficiency PWM
- Protection: Overload, overtemperature, short-circuit, surge with TVS diodes
- Diagnostics: Overload (OLF), overtemperature (OTF), undervoltage (PNG) status registers
- Tone Generator: Factory trimmed 22 kHz, controlled via I2C and external signals
- I2C Interface: Standard 2-wire with acknowledgment, supports read/write and diagnostic functions
- ESD Tolerance: Up to 4 kV on output power pins
- Operating Temperature: -25°C to 125°C junction
- Dimensions: 4.00 x 4.00 x 0.55 mm
Buy the STMicroelectronics Series LNBH25L Satellite Control IC: LNBH25LPQR
Purchase the STMicroelectronics LNBH25LPQR online today for your satellite receiver projects. This advanced control IC features integrated step-up converter, adjustable output voltages, and robust protection diagnostics. Its compact QFN24 package allows easy integration into set-top boxes, multi-switches, and Sat-TV systems. With high efficiency of 93%, low power dissipation, and reliable overload and thermal protections, it ensures stable, noise-free operation. Enhance your satellite system’s performance by ordering the LNBH25LPQR now for seamless signal control and long-lasting durability.
Get STMicroelectronics LNBH25LPQR today—designed for reliable satellite signal control with low power dissipation and built-in protections.
