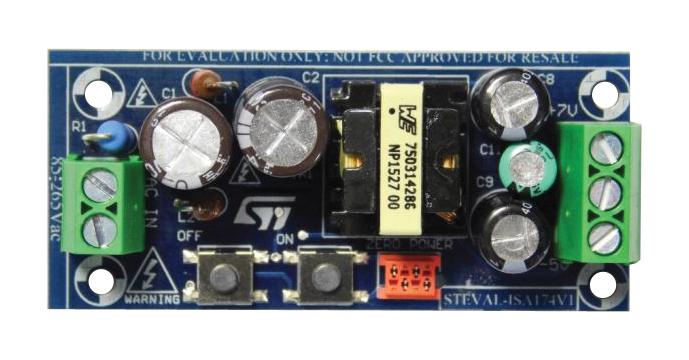

STMICROELECTRONICS STEVALISA174V1 Flyback Converter
The STEVAL-ISA174V1 is a compact 7 W dual output offline flyback converter designed for home appliances, utilizing VIPerOP technology. It features ultra-low power consumption during standby mode, with zero-power input consumption below 5 mW at 230 VAC, and complies with European eco-design standards. The converter offers negative output voltage configuration, high efficiency, and robust protections like overload and thermal shutdown. Its innovative design simplifies negative voltage setup and ensures reliable operation with excellent EMI performance thanks to frequency jittering. Ideal for energy-efficient, compact household power supplies.
STMICROELECTRONICS STEVALISA174V1 Flyback Converter Specifications:
- Topology: Flyback
- Isolation: no
- Input power consumption: Less than 5 mW at 230 Vac in Zero-Power Mode, Less than 10 mW at 230 Vac no load, Less than 400 mW at 230 Vac with 250 mW load
- Input Voltage: 85 - 265 Vac
- Output 1: -5 V, 840 mA
- Output 2: 7 V, 400 mA
- Frequency: 60 kHz with jittering (+7%)
- Max ambient temperature: 60 °C
- Dimensions: 69.6 mm x 28 mm
- Protection features: OLP, VCC clamp, max duty cycle counter, thermal shutdown
- Standby Power Efficiency: <10 mW at 230 VAC
- Compliance: IEC62301, ErP Lot 6 Tier 2, European regulation 1275/2008, IEC55022 Class B EMI
- Temperature Range: -55°C to +105°C (device rating up to 60°C)
- Reliability: ViperPlus avalanche rugged technology, embedded protections
- RoHS compliant
Buy the Buy STMicroelectronics OFFLINE Flyback Converter Part Number STEVALISA174V1 Online
Purchase the STMicroelectronics OFFLINE Flyback Converter STEVALISA174V1 online today for a highly efficient, compact power supply solution suitable for home appliances. Featuring zero-power standby mode, simplified negative voltage setup, and robust protections like overload and thermal shutdown, it ensures reliability and energy savings. Compliant with global eco-design standards, it boasts low EMI thanks to frequency jittering and high temperature operation up to 60°C. Ideal for manufacturers seeking energy-efficient, space-saving, and cost-effective power solutions with certified safety and performance.
Order your STMicroelectronics OFFLINE Flyback Converter STEVALISA174V1 today and ensure energy-efficient, reliable power solutions for household appliances.
