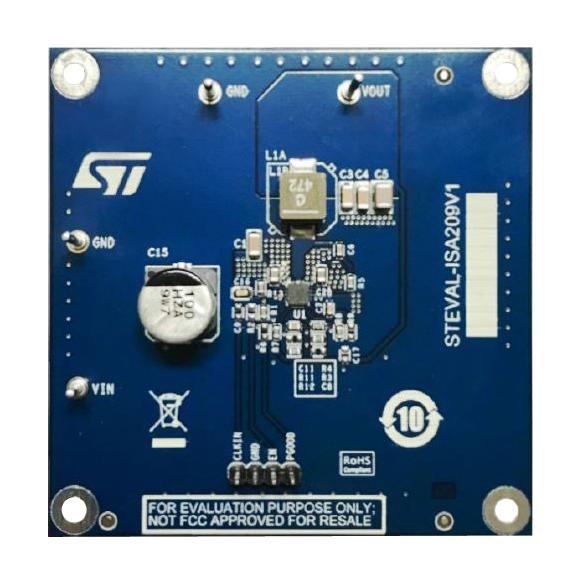

STMICROELECTRONICS STEVALISA209V1 power management module
The STEVAL-ISA209V1 evaluation board features a 38 V, 3 A synchronous step-down switching regulator based on the L6983NQTR. This versatile power management solution offers a wide input voltage range of 3.5 V to 38 V, with adjustable output from 0.85 V to VIN, and fixed 3.3 V or 5 V options. It boasts low quiescent current of 17 μA, internal compensation, and programmable switching frequencies from 200 kHz to 2.2 MHz. Ideal for efficiency and low-noise applications, it includes features like soft-start, overvoltage, thermal protection, and enable control, all in a compact QFN16 package.
STMICROELECTRONICS STEVALISA209V1 power management module Specifications:
- Input Voltage Range: 3.5 V to 38 V
- Output Voltage: from 0.85 V to VIN, fixed 3.3 V and 5 V options
- Maximum Output Current: 3 A
- Quiescent Current: 17 μA
- Switching Frequency: Programmable from 200 kHz to 2.2 MHz
- Internal Compensation: Yes
- Protection Features: Overvoltage, thermal shutdown, enable control
- Soft-start: Internal, 1.3 ms
- Power Good: Open collector monitoring
- Package: QFN16 (3x3 mm)
- Spread Spectrum: Optional for EMC improvement
- Synchronization: External clock for LNM version
- Shutdown Current: 2 μA
Buy the STMicroelectronics STEVAL-ISA209V1 – Reliable Switching Regulator for Industrial Applications
Order the STMicroelectronics STEVAL-ISA209V1 online today and enhance your power management solutions with our high-performance synchronous step-down regulator evaluation board. This compact, versatile module offers wide input voltage range, adjustable and fixed outputs, low quiescent current, and protection features suitable for diverse industrial applications. Its programmable switching frequency, internal compensation, and spread spectrum option ensure optimal EMC and efficiency. Perfect for engineers seeking reliable, easy-to-integrate power solutions, buy now to accelerate your project with trusted technology.
Buy STMicroelectronics STEVAL-ISA209V1 now and experience unmatched efficiency, low noise, and reliable power regulation for your industrial designs.
