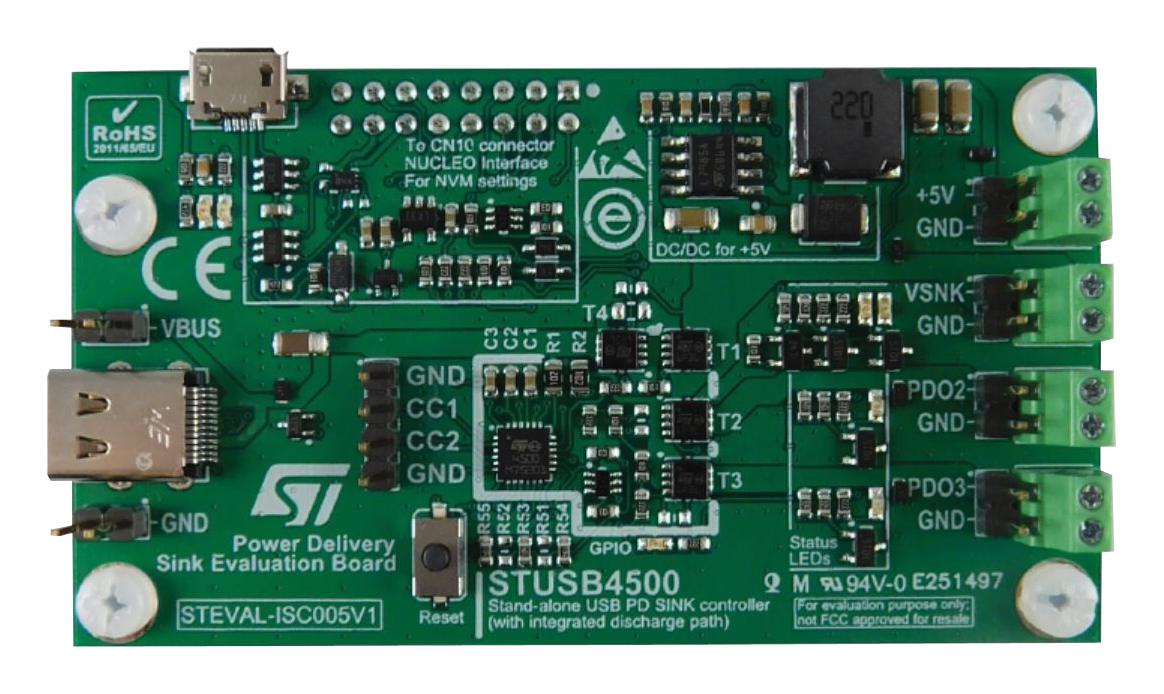

STMICROELECTRONICS STEVALISC005V1 USB Power Delivery Evaluation Board
The STEVAL-ISC005V1 evaluation board is a ready-to-use USB Power Delivery sink based on the STUSB4500 controller, supporting USB Type-C and USB PD (rev2.0 & rev3.0). It negotiates power via PDOs for 5 V, 15 V, and 20 V outputs, enabling flexible charging options. Equipped with an L7985 step-down regulator, the board provides a stable 5 V output suitable for microcontroller systems or other devices. It includes multiple LEDs for status indication and supports customizable startup profiles via GUI, making it ideal for testing and development of USB PD applications.
STMICROELECTRONICS STEVALISC005V1 USB Power Delivery Evaluation Board Specifications:
- USB PD port (sink) supporting USB type-C and USBPD rev2.0 & rev3.0
- Supports up to 3 PDO for flexible power negotiation (5 V, 15 V, 20 V)
- On-board L7985 step-down regulator provides 5 V output
- Multiple status LEDs for power and connection indication
- Configurable startup profiles via GUI
- Supports short-to-Vgus protections (22 V) and Vgus (28 V)
- CE certified, RoHS compliant
- Compatible with NUCLEO-F072RB development board for configuration and debug
- Dimensions: compact form factor suitable for embedded applications
Buy the STMicroelectronics Series STEVAL-ISC005V1 USB PD: STEVAL-ISC005V1
Discover the versatility of the USB Power Delivery Evaluation Board designed for developers working with USB-C and PD standards. This board supports multiple PDO configurations for different voltage levels, featuring a built-in 5 V regulator and status LEDs. Ideal for testing, debugging, and integrating USB PD functionality into your projects, its compatibility with NUCLEO-F072RB makes it a comprehensive solution for embedded system development. Buy online now to streamline your USB power delivery innovation and accelerate your product development process.
Order your STMicroelectronics Series STEVAL-ISC005V1 USB PD evaluation board today and enhance your USB Type-C power delivery projects with reliable and flexible development tools.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STEVALISC005V1?
You can click on the BUY or RFQ button to purchase STEVALISC005V1 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STEVALISC005V1?
You can download the STEVALISC005V1 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STEVALISC005V1?
STMICROELECTRONICS
