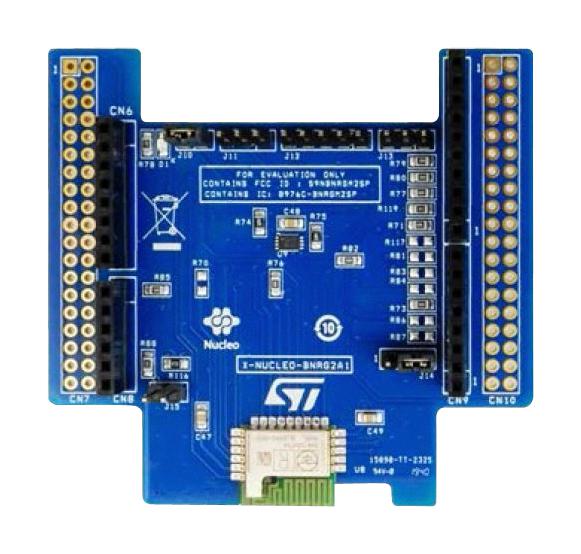

STMICROELECTRONICS XNUCLEOBNRG2A1 Bluetooth Expansion Module
The X-NUCLEO-BNRG2A1 is a Bluetooth low energy expansion board designed for STM32 Nucleo development boards, featuring the BlueNRG-M2SP module. It supports Bluetooth v5.0 features such as master and slave modes, data packet extension, and AES encryption, making it suitable for IoT, smart home, industrial sensors, and security applications. The compact 11.5mm x 13.5mm form factor includes integrated balun and harmonic filter, multiple interfaces, and compatibility with Arduino UNO R3 connectors, providing reliable wireless connectivity for low-power applications.
STMICROELECTRONICS XNUCLEOBNRG2A1 Bluetooth Expansion Module Specifications:
- Based on BlueNRG-M2SP module with FCC certification
- Bluetooth v5.0 compliant with BLE data packet extension
- Supports master and slave modes
- Integrated BALF-NRG-02D3 balun with harmonic filter
- Interfaces: UART, SPI, GPIOs, ADC, timers, watchdog, RTC, DMA
- Small form factor: 11.5mm x 13.5mm
- Embedded Cortex-M0 32-bit core with 256 KB Flash and 24 KB RAM
- Transmit power up to +8 dBm, Rx sensitivity down to -88 dBm
- Link budget up to 96 dB with reliable connection
- Compatible with STM32 Nucleo boards via Arduino UNO R3 connectors
- Optional cascaded configurations for larger systems
- Supports secure AES-128 encryption and Bluetooth protocol stack
- Ideal for IoT, smart home, industrial, wearables, and security applications
Buy the Buy STMicroelectronics Bluetooth Low Energy Expansion Part Number XNUCLEOBNRG2A1 Online
Purchase the STMicroelectronics Bluetooth Low Energy Expansion Module XNUCLEOBNRG2A1 online today. Designed for seamless integration with STM32 Nucleo boards, this compact device offers Bluetooth v5.0 connectivity, supporting IoT, smart home, industrial, and wearable applications. Crafted with an embedded Cortex-M0 core, 256 KB Flash, and 24 KB RAM, it provides high performance with ultra-low power consumption. Its integrated balun, harmonic filter, and multiple interfaces ensure reliable wireless communication, security, and scalability for advanced low-power solutions. Order now for fast delivery.
Get STMicroelectronics Bluetooth Low Energy Expansion board XNUCLEOBNRG2A1 today—optimized for IoT and smart applications with comprehensive Bluetooth 5.0 features.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS XNUCLEOBNRG2A1?
You can click on the BUY or RFQ button to purchase XNUCLEOBNRG2A1 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part XNUCLEOBNRG2A1?
You can download the XNUCLEOBNRG2A1 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of XNUCLEOBNRG2A1?
STMICROELECTRONICS
