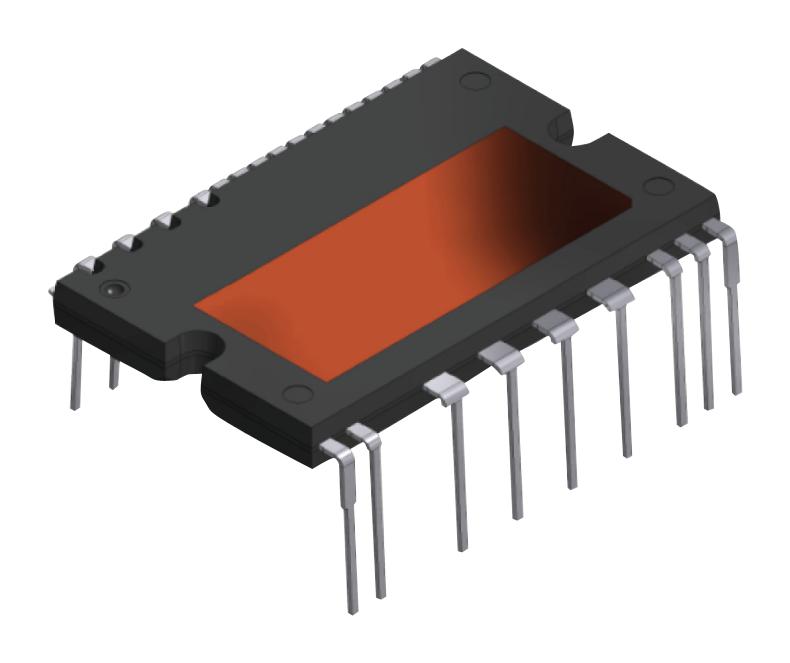

STMICROELECTRONICS STIB1060DM2TL Power Inverter Module
The IPM module is a compact, high-performance 3-phase inverter designed for motor drives and high-efficiency power converters. It features a rugged SDIP2B-26L package, integrated control ICs, fast recovery diodes, and an internal temperature sensor. Suitable for industrial applications such as motor drives, inverters, and linear compressors, this IPM provides reliable operation with smart shutdown and fault protection mechanisms, including overcurrent and undervoltage lockout. Its high voltage capability of 600 V and continuous current of 10 A make it ideal for demanding electric motor control and inverter systems.
STMICROELECTRONICS STIB1060DM2TL Power Inverter Module Specifications:
- Package: SDIP2B-26L, rugged design, environmentally compliant ECOPACK®
- Voltage Rating: 600 V (drain-source), surge voltage 500 V
- Current: Continuous 12.5 A, Peak 50 A (less than 1 ms)
- Thermal Resistance: Junction-case 1.59 °C/W
- Isolation Voltage: 1500 Vrms
- Control Voltage: 3.3 V / 5 V TTL/CMOS inputs
- Protection Features: Overcurrent, undervoltage lockout, smart shutdown
- Integrated Components: Bootstrap diodes, internal temperature sensor
- Application: 3-phase motor inverters, linear and BLDC compressors
- Operating Temperature: -40°C to 125°C
Buy the STMicroelectronics STIB1060DM2T-L – Reliable Power MOSFET for Industrial Applications
Purchase the STMicroelectronics STIB1060DM2T-L now to enhance your motor drive systems with a high-efficiency, reliable 3-phase inverter. Featuring a rugged SDIP2B-26L package, integrated control ICs, fast-recovery diodes, and smart fault protection, this module offers excellent performance for industrial applications. Its 600 V voltage rating, 10 A continuous current, and comprehensive protection features make it ideal for inverter systems and high-efficiency converters. Order online today and improve your project’s reliability and efficiency with this advanced power module.
Order your STMicroelectronics STIB1060DM2T-L inverter module today and ensure reliable, efficient motor control for your industrial projects.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STIB1060DM2TL?
You can click on the BUY or RFQ button to purchase STIB1060DM2TL from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STIB1060DM2TL?
You can download the STIB1060DM2TL datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STIB1060DM2TL?
STMICROELECTRONICS
