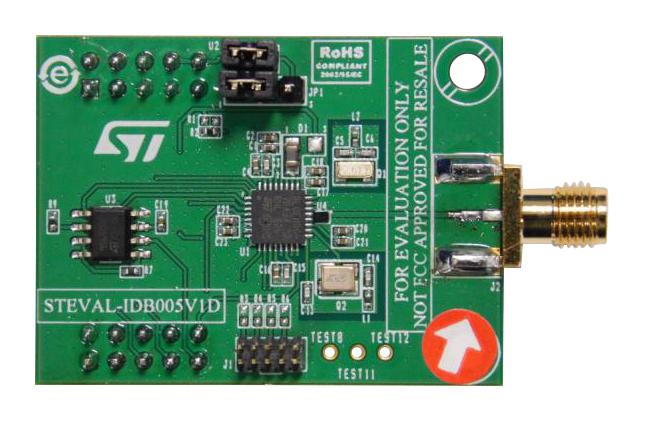

STMICROELECTRONICS STEVALIDB005V1D Bluetooth Low Energy Module
The STEVAL-IDB005V1D is an RF daughterboard platform utilizing the BlueNRG-MS low power Bluetooth 4.1 compliant chip, supporting master and slave roles. It features an SMA connector for antennas, SPI interface for external microcontrollers, and delivers maximum transmission power of +8 dBm with receiver sensitivity of -88 dBm. Designed for low power consumption, it operates at 7.3 mA in RX and 8.3 mA in TX mode at +0 dBm, making it suitable for Bluetooth® Smart applications that require reliable, low-energy wireless communication.
STMICROELECTRONICS STEVALIDB005V1D Bluetooth Low Energy Module Specifications:
- Bluetooth® 4.1 compliant, supporting master and slave roles
- Maximum transmission power: +8 dBm
- Receiver sensitivity: -88 dBm
- Power consumption: 7.3 mA RX, 8.3 mA TX at +0 dBm
- Features SMA connector for antennas, SPI connector for microcontroller
- RoHS compliant
- Compatible with STM32L motherboards
- Low power Bluetooth® Smart RF module
- Supporting Bluetooth low energy protocols
- Operating temperature varies with environment
Buy the STMicroelectronics Series Bluetooth Low Energy Module: STEVAL-IDB005V1D
Purchase the STMicroelectronics Bluetooth Low Energy Module STEVAL-IDB005V1D online today for advanced low-energy wireless communication. Powered by the BlueNRG-MS chip, this module supports Bluetooth 4.1, delivering up to +8 dBm transmission power and exceptional sensitivity of -88 dBm. Its compact design features SMA and SPI connectors, ideal for IoT, wearable devices, and smart sensor applications. With low power consumption of just 7.3 mA in receive mode and 8.3 mA in transmit, it offers reliable performance for battery-powered projects. Buy now and integrate high-quality Bluetooth connectivity into your product.
Get STMicroelectronics Bluetooth Low Energy Module STEVAL-IDB005V1D today—optimized for low power consumption and reliable wireless connectivity.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STEVALIDB005V1D?
You can click on the BUY or RFQ button to purchase STEVALIDB005V1D from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STEVALIDB005V1D?
You can download the STEVALIDB005V1D datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STEVALIDB005V1D?
STMICROELECTRONICS
