STMICROELECTRONICS STM32303EEVAL Embedded Development Board

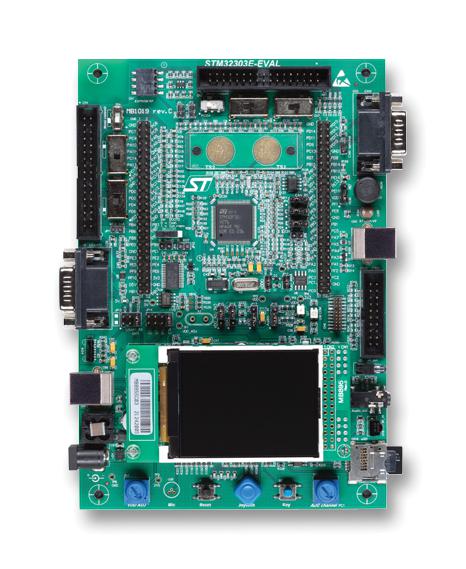

The STM32303E-EVAL evaluation board is a comprehensive development platform featuring the STM32F303VET6 microcontroller with ARM Cortex-M4 core. It supports multiple power supply options such as power jack, USB connectors, and daughter board. Key features include a stereo audio DAC with microphone support, MicroSD card slot, temperature sensor, EEPROM, RF EEPROM, RS-232, IrDA, and CAN interfaces. It provides extensive connectivity options like touch sensing, USB FS, TFT display, and motor control. Ideal for application development and peripheral testing in industrial automation, embedded systems, and hardware prototyping.
STMICROELECTRONICS STM32303EEVAL Embedded Development Board Specifications:
- Microcontroller: STM32F303VET6 with ARM Cortex-M4 core
- Power Supply Options: Power jack, USB, daughter board
- Audio DAC: Stereo with microphone support
- Memory: 64 KByte Data SRAM, 16 KByte Program SRAM, 512 KByte Flash
- Display Interface: 240x320 TFT color LCD via SPI
- Connectivity: MicroSD SPI, USB FS, UARTs, CAN, IrDA
- Peripherals: Temperature sensor, EEPROM, RF EEPROM, humidity sensor
- Input Devices: Joystick, touch sensing buttons, potentiometer
- Other Features: 4-color LEDs, high brightness LED, relay, motor control connectors, RTC with backup battery
- Debugging: Embedded ST-LINK/V2, JTAG/SWD support
- Voltage: 3.3 V, adjustable 2.0 V - 3.6 V
Buy the STMicroelectronics STM32303E-EVAL – Reliable Embedded Development for Industrial Applications
Purchase the STM32F303VET6-based development board online today to accelerate your project. Featuring comprehensive interfaces like USB, TFT display, MicroSD, and audio DAC, it supports application development, peripheral testing, and prototype creation. Its versatile connectivity options and debugging features make it ideal for embedded systems, industrial automation, and hardware prototyping. Whether you're developing industrial equipment, automation systems, or embedded devices, this platform offers reliable performance and extensive features to meet your development needs efficiently.
Order your STMicroelectronics STM32303E-EVAL evaluation board today and enhance your embedded application development with a versatile platform supporting diverse peripherals and industrial connectivity.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STM32303EEVAL?
You can click on the BUY or RFQ button to purchase STM32303EEVAL from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STM32303EEVAL?
You can download the STM32303EEVAL datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STM32303EEVAL?
STMICROELECTRONICS
