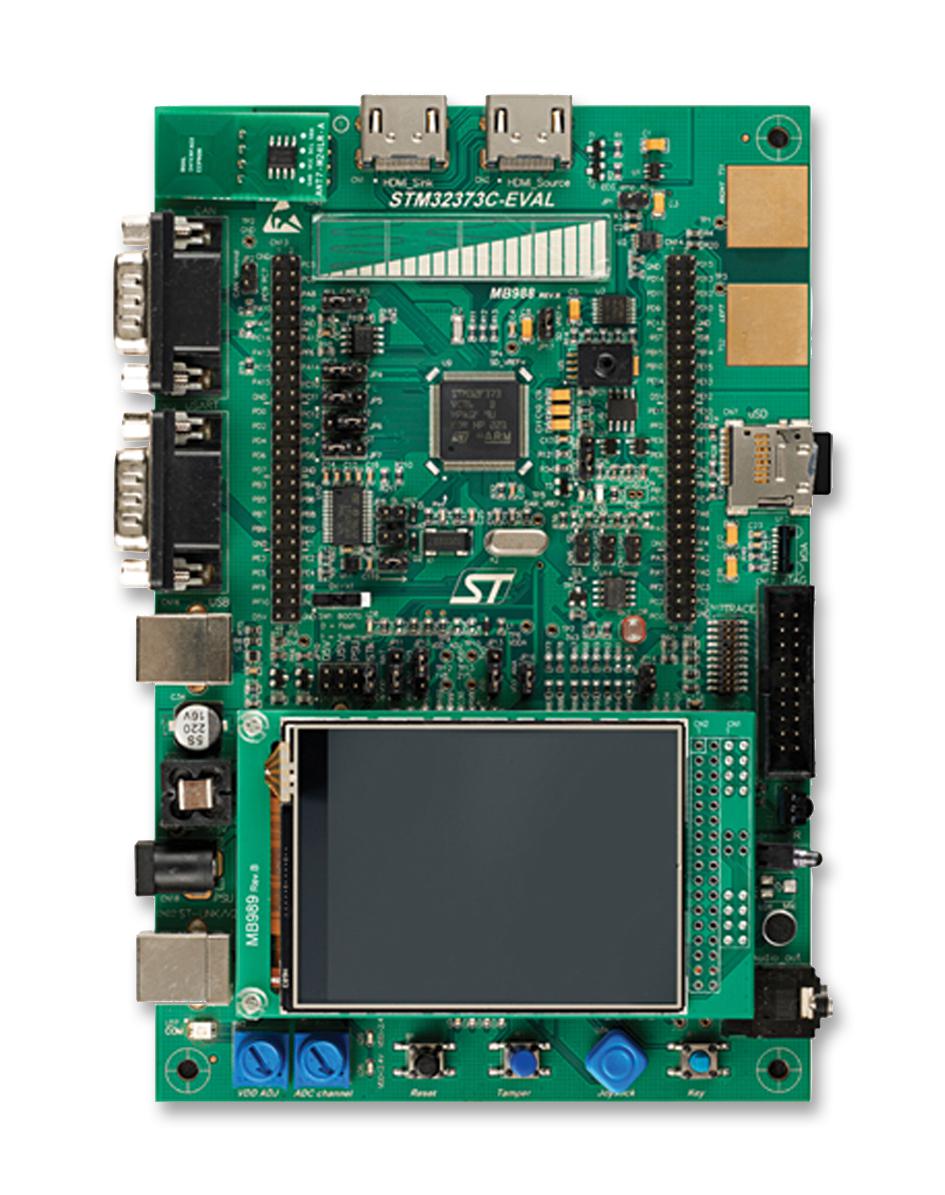

STMICROELECTRONICS STM32373CEVAL Embedded Development Board
The STM32373C-EVAL evaluation board offers a comprehensive platform for developing and testing applications with the STM32F373VCT6 microcontroller. Featuring dual ICs, multiple communication interfaces including USART, CAN, USB FS, IrDA, and HDMI, it supports diverse peripherals such as a 240x320 TFT LCD, touch slider, ECG, pressure sensor, temperature sensor, MicroSD card, and more. Equipped with an embedded ST-LINK/V2 debugger, extension headers, and various power options, this versatile board is ideal for embedded system development, testing, and prototyping in industrial, medical, and automation sectors. It enables thorough evaluation of peripherals and facilitates custom application creation.
STMICROELECTRONICS STM32373CEVAL Embedded Development Board Specifications:
- Microcontroller: STM32F373VCT6 with ARM Cortex-M4 core
- Memory: 256-KByte Flash, 32-KByte SRAM
- Display: 240x320 TFT color LCD via SPI
- Communication: USART, CAN 2.0 A/B, USB FS, IrDA, HDMI, CEC
- Analog Inputs: 12-bit ADC, three 16-bit sigma delta ADCs, microphone connected via amplifier
- DAC: Three 12-bit DACs
- Inputs/Outputs: Two ADC & DAC input/output signals
- Power supply options: signal connector, power jack, ST-LINK USB, user USB, daughter board
- Additional peripherals: temperature sensor, pressure sensor, ECG, LDR, EEPROM, MicroSD card, touch slider
- Debugging: Embedded ST-LINK/V2 with JTAG/SWD support
- Other features: touch sensing, USB, extension headers for daughter/wrapping boards, RTC with backup battery
- Dimensions and layout designed for versatile embedded system prototyping and testing
Buy the Buy STMicroelectronics STM32F373VCT6 Part Number STM32373CEVAL Online
Order the STMicroelectronics STM32F373VCT6 embedded development board today and unlock a complete platform for designing, testing, and deploying advanced embedded applications. Equipped with diverse communication interfaces, extensive sensors, and extension headers, it supports rapid prototyping in industrial, medical, and automation sectors. Embedded with an ST-LINK/V2 debugger, multiple power options, and versatile peripherals, it ensures seamless integration and debugging. Perfect for developers needing comprehensive evaluation tools, the STM32F373VCT6 board makes sophisticated embedded system development efficient and reliable.
Get STMicroelectronics STM32F373VCT6 today—built for advanced embedded system development with extensive peripheral support and debugging features.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STM32373CEVAL?
You can click on the BUY or RFQ button to purchase STM32373CEVAL from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STM32373CEVAL?
You can download the STM32373CEVAL datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STM32373CEVAL?
STMICROELECTRONICS
