STMICROELECTRONICS STM32MP157ADK1 Embedded Development Kit

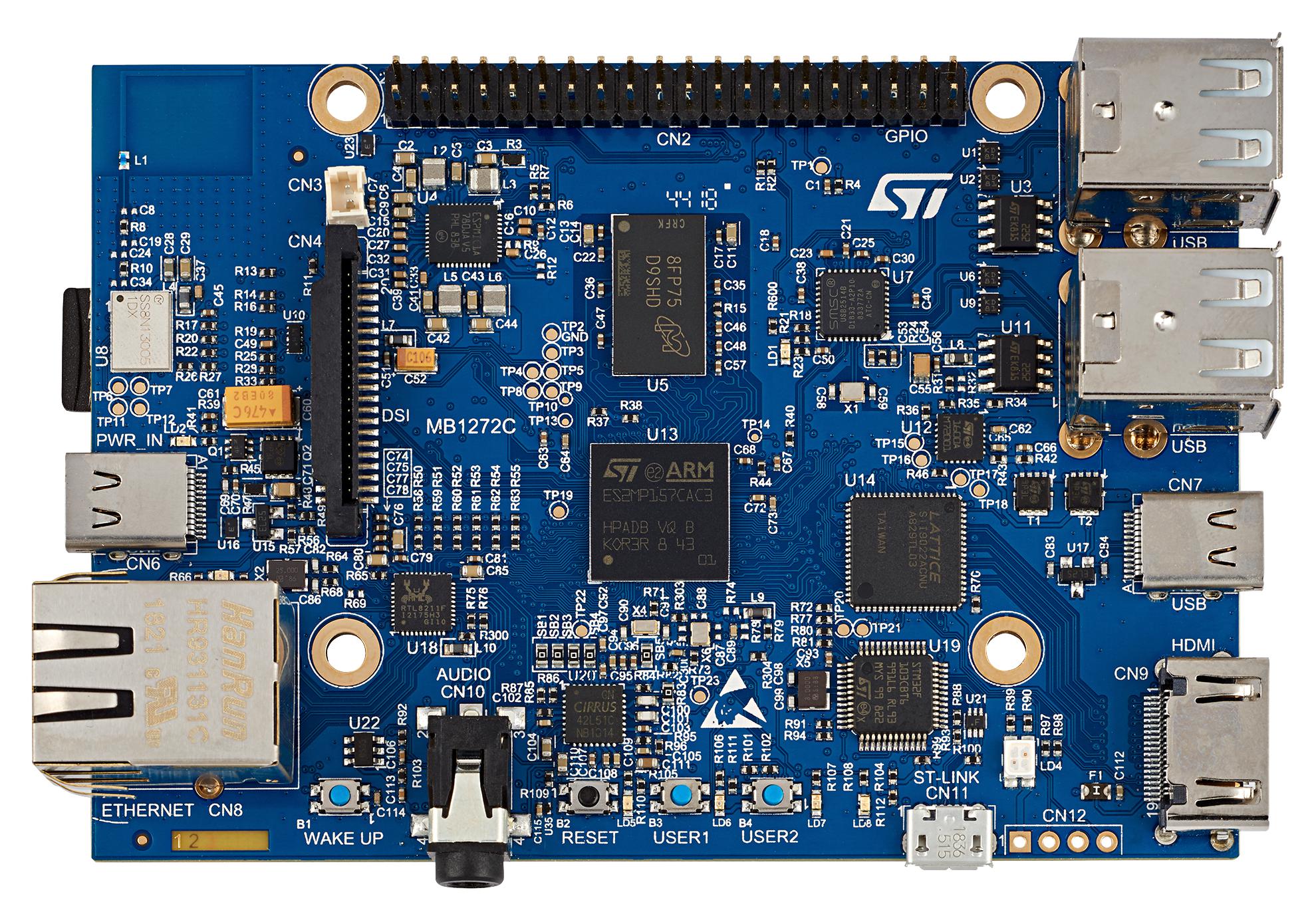

The STM32MP157C-DK1 discovery kit is designed around the STM32MP1 series microprocessors, enabling developers to easily create applications using the STM32 MPU OpenSTLinux Distribution for the main processor and STM32CubeMP1 software for the co-processor. The kit features an embedded ST-LINK debug tool, LEDs, push-buttons, and various I/O connectors including a 1-Gbps Ethernet port, USB Type-C OTG port, four USB Type-A host ports, HDMI transceiver, stereo headset jack with analog microphone, and a microSD card slot. To enhance expandability, there are two GPIO expansion connectors compatible with Arduino and Raspberry Pi shields. The main processor is based on the STM32MP157 ARM architecture, featuring dual Cortex-A7 cores and a Cortex-M4 core, packaged in TFBGA361. It supports a 4-inch TFT display with 480x800 pixels, LED backlight, MIPI DSI-M interface, and a capacitive touch panel. Connectivity options include Wi-Fi 802.11b/g/n and Bluetooth Low Energy 4.1. Due to high demand, delivery times may be extended, and the product is exempt from discounts.
STMICROELECTRONICS STM32MP157ADK1 Embedded Development Kit Specifications:
- Microprocessor: STM32MP157 series with dual Cortex-A7 and Cortex-M4 cores
- Package: TFBGA361
- Display: 4-inch TFT with 480x800 pixels, LED backlight, MIPI DSI interface, capacitive touch panel
- Connectivity: 1-Gbps Ethernet (RGMII), Wi-Fi 802.11b/g/n, Bluetooth Low Energy 4.1
- USB Interfaces: USB Type-C OTG, 4 USB Type-A Host ports
- Audio: Stereo headset jack with analog microphone input
- Memory: 4-Gbit DDR3L, 16 bits, 533 MHz
- Expansion: GPIO connectors compatible with Arduino and Raspberry Pi shields
- Additional features: ST-LINK/V2-1 debugger, LEDs, push-buttons, microSD slot
- Power: 5V/3A via USB Type-C power input
Buy the STMicroelectronics Series STM32MP1 Microprocessor: STM32MP157ADK1
Order the STMicroelectronics STM32MP157 development kit online today and accelerate your embedded application projects. Featuring a robust dual Cortex-A7 and Cortex-M4 processor, high-speed Ethernet, Wi-Fi, Bluetooth connectivity, and a 4-inch capacitive touch display, this kit is ideal for developers seeking flexibility, expandability, and comprehensive tools. Includes microSD card support, multiple USB ports, HDMI, and GPIO expansions compatible with Arduino and Raspberry Pi shields. Perfect for IoT, industrial automation, and consumer electronics development—prioritize your innovation today.
Get STMicroelectronics STM32MP157ADK1 today—designed for embedded development with extensive connectivity and expandability.
