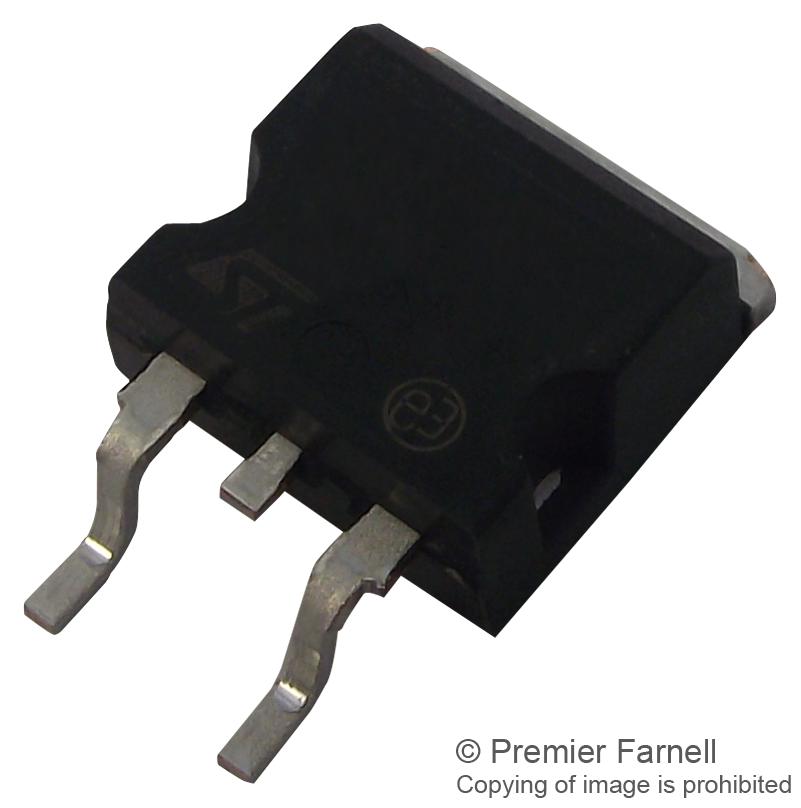

STMICROELECTRONICS L7905ACD2TTR Negative Voltage Regulator
The L79 series consists of negative voltage regulators available in TO-220, TO-220FP, and D?PAK packages, with fixed output voltages like -5V, -8V, -12V, and -15V. Designed for applications requiring local on-card regulation and split power supplies, these regulators can deliver over 1.5A with thermal overload, short-circuit, and SOA protections. Suitable for use with external components for adjustable voltages, they provide stable output with minimal voltage drift and noise, making them ideal in power management systems.
STMICROELECTRONICS L7905ACD2TTR Negative Voltage Regulator Specifications:
- Output Current: up to 1.5 A
- Output Voltages: -5V, -8V, -12V, -15V
- Thermal Overload Protection: Yes
- Short-circuit Protection: Yes
- Output Tolerance: 2% (AC version), 4% (C version) at 25°C
- Dropout Voltage: approximately 1V at 1A
- Line Regulation: 120-240 mV depending on voltage
- Load Regulation: 100-240 mV
- Quiescent Current: 3 mA
- Temperature Range: -65°C to 125°C
- Package Types: TO-220, TO-220FP, D?PAK
- Protections: Thermal, Short-circuit, SOA
- Cooling: Requires adequate heat sinking for currents over 1.5A
Buy the Buy STMicroelectronics L79 Series Negative Voltage Regulator Part Number L7905ACD2T Today
Purchase the STMicroelectronics L79 Series negative voltage regulator online today for dependable voltage regulation in power management applications. Featuring fixed negative outputs of -5V, -8V, -12V, and -15V, these regulators deliver currents up to 1.5A with thermal overload, short-circuit, and SOA protections. Their wide operating temperature range and minimal voltage drift ensure stable performance across various environments. Select from TO-220, TO-220FP, or D?PAK packages, and benefit from external component compatibility for adjustable voltages, making them ideal for split power supplies and local regulation in complex systems.
Order your STMicroelectronics L79 Series L7905ACD2T negative voltage regulator today and ensure reliable power regulation with robust protections for your projects.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS L7905ACD2TTR?
You can click on the BUY or RFQ button to purchase L7905ACD2TTR from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part L7905ACD2TTR?
You can download the L7905ACD2TTR datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of L7905ACD2TTR?
STMICROELECTRONICS
