STMICROELECTRONICS STM811MW16F Power Supervisory Circuit
The STM811 microprocessor reset circuit is a low-power supervisory device designed to monitor power supplies and assert a reset signal when voltage drops below a preset threshold. It features push-button reset input, guaranteed reset assertion down to 1.0V, and operates over a temperature range of –40°C to 85°C. Packaged in compact SOT23-3 and SOT143-4 packages, this device ensures reliable operation in industrial applications, providing a 140 ms reset pulse width with low supply current of approximately 6 μA, making it highly suitable for various embedded systems.
STMICROELECTRONICS STM811MW16F Power Supervisory Circuit Specifications:
- Supply Voltage Range: 1.0 to 5.5 V
- Reset Threshold Voltage: 2.85 V to 4.75 V (depending on variant)
- Operating Temperature: –40°C to 85°C
- Reset Pulse Width: 140 ms (minimum)
- Supply Current: typical 6 μA
- Package Types: SOT23-3, SOT143-4
- Vcc Transient Immunity: immunity to negative-going glitches below 1 V
- Manual Reset Input: active low, internal 20 kΩ pull-up resistor
- Maximum Storage Temperature: –55°C to 150°C
- Reflow Soldering Temperature: 260°C for 10 seconds

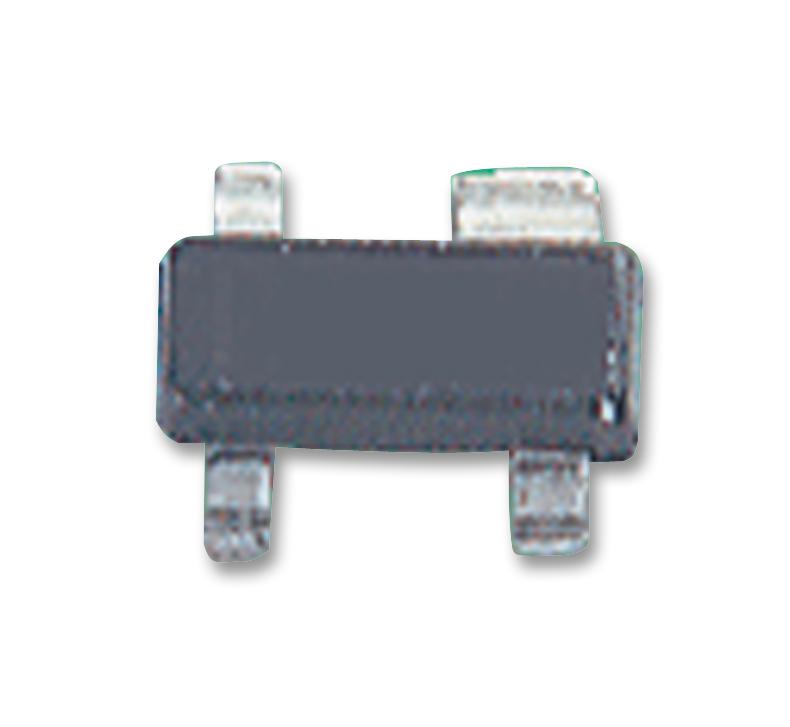

Buy the Buy STMicroelectronics Power Supervisory Circuit Part Number STM811MW16F Online
Enhance your electronic system's reliability by purchasing the STMicroelectronics power supervisory circuit online. This compact, low-power device features a guaranteed reset assertion down to 1.0V, operates across a broad temperature range of –40°C to 85°C, and includes a manual reset input. Packaged in small SOT23-3 and SOT143-4 packages, it ensures efficient power supply monitoring. Order now to get fast delivery, secure online payment options, and excellent technical support to meet your industrial and embedded system needs.
Order your STMicroelectronics SeriesSTM811MW16F power supervisory circuit today and ensure reliable power monitoring and system reset in your industrial applications.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STM811MW16F?
You can click on the BUY or RFQ button to purchase STM811MW16F from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STM811MW16F?
You can download the STM811MW16F datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STM811MW16F?
STMICROELECTRONICS
