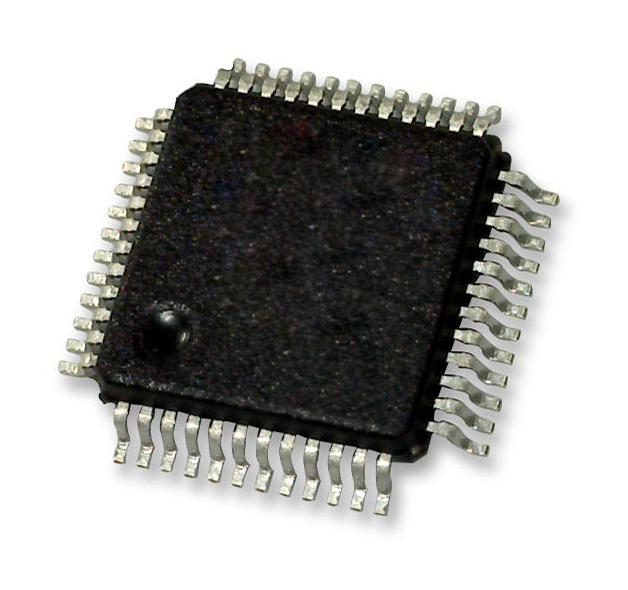

STMICROELECTRONICS STM8AL3L68TCY Automotive Low-Power Microcontroller
The medium-density STM8AL313x/4x/6x and STM8AL3L4x/6x microcontrollers are ultra-low-power 8-bit devices designed for automotive applications. Operating from 1.8 V to 3.6 V (down to 1.65 V at power down), they support temperatures from -40°C to 85°C or 125°C. Features include an enhanced STM8 CPU core with up to 16 MIPS at 16 MHz, embedded EEPROM, Flash memory, multiple I/O options, and dedicated peripherals such as ADC, DAC, timers, and communication interfaces. They offer fast wakeup times, safe power management, and debugging capabilities, making them ideal for automotive control and sensor systems.
STMICROELECTRONICS STM8AL3L68TCY Automotive Low-Power Microcontroller Specifications:
- Operating voltage: 1.8 V to 3.6 V (down to 1.65 V at power down)
- Temperature range: -40°C to 85°C or 125°C
- Flash memory: up to 32 Kbyte with 20-year data retention at 55°C
- Data EEPROM: up to 1 Kbyte with 300,000 cycle endurance
- RAM: up to 2 Kbyte
- Maximum CPU frequency: 16 MHz, delivering up to 16 MIPS
- Low-power modes: wait, low-power run, low-power wait, halt with RTC, halt with PDR
- Wakeup time from halt: 4.7 microseconds
- Peripherals: ADC, DAC, USART, SPI, I2C, timers, comparators
- Communication: SPI, I2C (400 kHz), USART, LIN
- Package options: 32-pin and 48-pin with integrated LCD support in some variants
- Debugging: SWIM interface, fast on-chip programming
Buy the STMicroelectronics Series STM8AL Automotive Low-Power MCU: STM8AL3L68TCY
Discover the reliable and energy-efficient automotive control microcontroller designed to meet demanding temperature and power requirements. With up to 32K Flash, 1K EEPROM, advanced peripherals, and flexible low-power modes, this microcontroller ensures optimal performance in automotive sensor and control applications. Its fast wakeup time, integrated debugging, and robust safety features make it ideal for a range of automotive systems. Purchase online today for proven quality and seamless integration into your next project.
Get STMicroelectronics STM8AL3L68TCY today—built for automotive control, ultra-low power operation, and long-term durability.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STM8AL3L68TCY?
You can click on the BUY or RFQ button to purchase STM8AL3L68TCY from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STM8AL3L68TCY?
You can download the STM8AL3L68TCY datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STM8AL3L68TCY?
STMICROELECTRONICS
