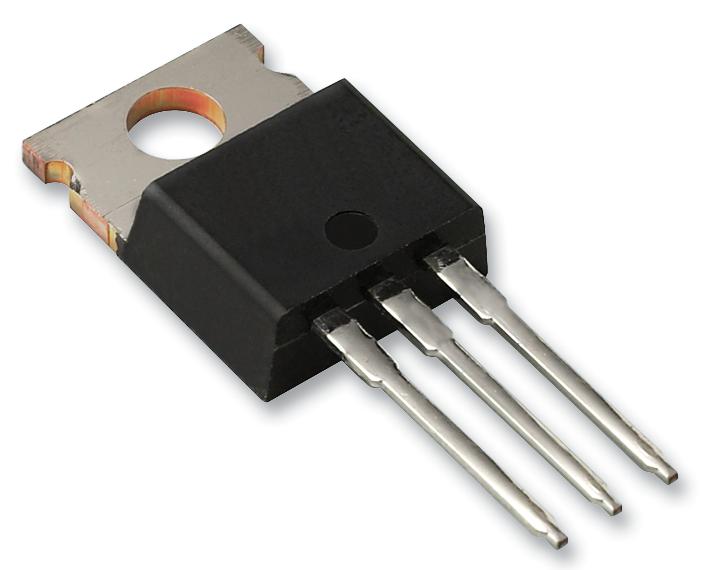

STMICROELECTRONICS STP13N80K5 High-Voltage Power MOSFET
The STP13N80K5 is a high-voltage N-channel power MOSFET designed using MDmesh K5 technology, offering ultra-low on-resistance and gate charge for high efficiency switching applications. Available in D2PAK, TO-220FP, TO-220, and TO-247 packages, it supports voltages up to 800 V with a drain current of 12 A and a pulsed drain current of 48 A. Its schematic features a Zener-protected internal structure, ensuring reliable performance and enhanced ESD robustness, suitable for switching and power management in demanding environments.
STMICROELECTRONICS STP13N80K5 High-Voltage Power MOSFET Specifications:
- Voltage Rating: 800 V
- Drain Current: 12 A (at Tc = 25°C)
- Pulsed Drain Current: 48 A
- Gate-Source Voltage: ±30 V
- Maximum Total Dissipation: 190 W (D2PAK), 35 W (TO-220FP)
- Gate Threshold Voltage: 3-5 V
- Static Rds(on): 0.37 Ω (typ.) at Vgs=10 V, Ib=6 A
- Input Capacitance Ciss: 870 pF, Coss: 50 pF, Crss: 2 pF
- Switching Times: Turn-on delay 16 ns, Turn-off delay 42 ns
- Package options: D2PAK, TO-220FP, TO-220, TO-247
- Thermal Resistance: RθJC 0.66 °C/W (D2PAK), RθJA 62.5 °C/W (junction to ambient)
- Insulation Voltage: 2500 V (RMS) at all leads to heat-sink
- Avalanche Current: 4 A, Energy: 148 mJ (starting Tj=25°C)
Buy the Buy STMicroelectronics Power MOSFET Part Number STP13N80K5 Online
Order the STP13N80K5 now to enhance your switching circuitry with a high-voltage N-channel MOSFET featuring ultra-low Rds(on) and gate charge. Perfect for demanding applications requiring up to 800 V operation, supports high current pulses, and is available in multiple packages including D2PAK, TO-220FP, TO-220, and TO-247. Designed for superior power density and efficiency, ensuring reliability and ease of integration in industrial, power supplies, and automation systems. Buy online today for fast delivery and competitive pricing.
Get STMicroelectronics STP13N80K5 today—built for high-voltage switching and power efficiency in demanding applications.
