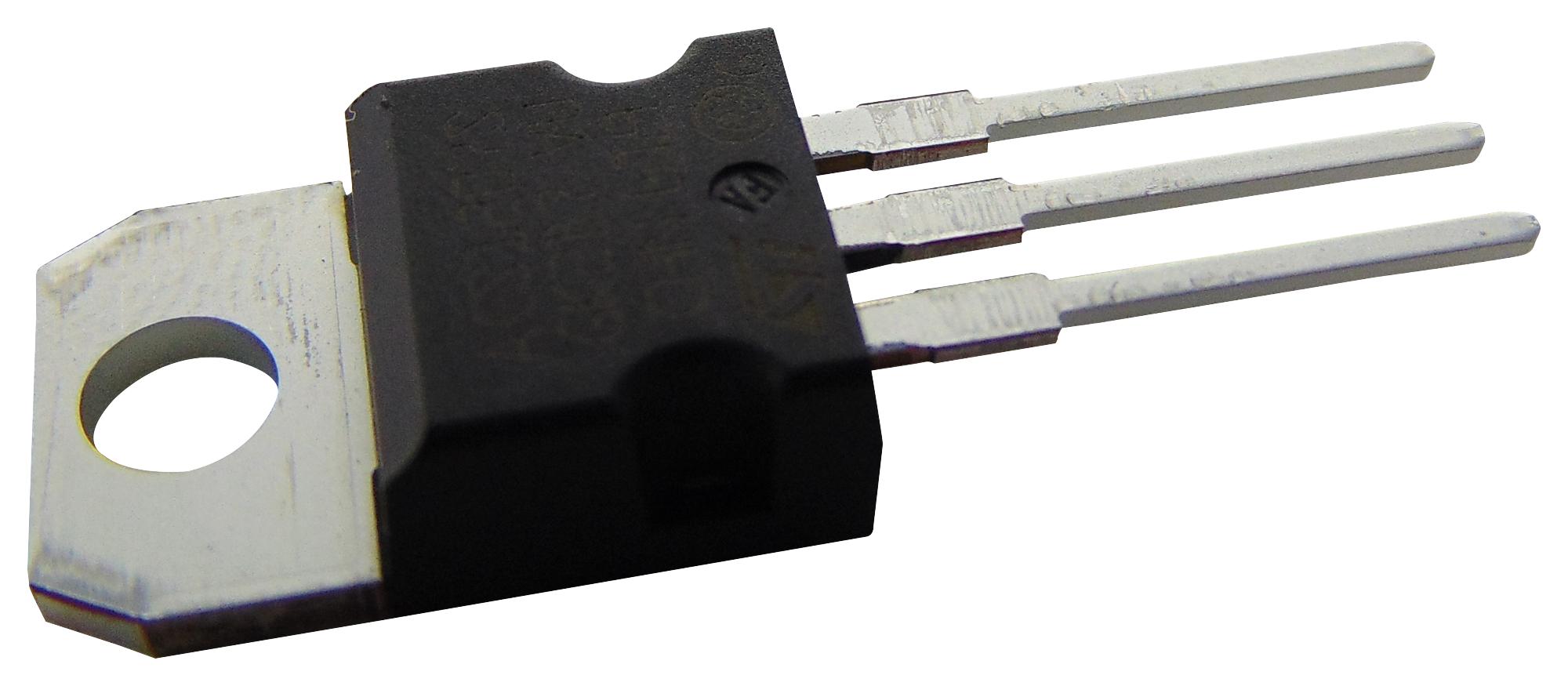

STMICROELECTRONICS STP13NM60ND Power MOSFET
These FDmesh™ II Power MOSFETs with intrinsic fast-recovery body diode utilize second-generation MDmesh™ technology. Designed in DPAK, TO-220FP, and TO-220 packages, they offer low on-resistance, high switching performance, and excellent avalanche capabilities, making them suitable for switching applications such as bridge topologies and ZVS converters. Their robust construction ensures high dv/dt and avalanche ruggedness, with a maximum drain-source voltage of 600 V and continuous drain current of 11 A. Ideal for demanding industrial or power supply environments needing reliable, efficient transistors.
STMICROELECTRONICS STP13NM60ND Power MOSFET Specifications:
- Drain-source voltage: 600 V
- Maximum continuous drain current: 11 A
- Pulsed drain current: 44 A
- Gate-source voltage: ±25 V
- Maximum power dissipation: 25 W (TO-220) / 109 W (DPAK)
- Package options: DPAK, TO-220FP, TO-220
- Thermal resistance junction-case: 1.15°C/W
- Storage temperature: -55°C to 150°C
- Operating junction temperature: up to 150°C
- Gate threshold voltage: 3V to 5V
- Low input capacitance: 845 pF
- Output capacitance: 47 pF
- Reverse recovery charge: 755 nc
- Switching times: turn-on delay 46.5 ns, turn-off delay 9.6 ns
- Avalanche current: 3 A, energy: 162 mJ
- Insulation withstand voltage: 2500 V RMS
- Weight varies with package, typical dimensions in millimeters
Buy the STMicroelectronics STP13NM60ND – Reliable Power MOSFET for Industrial Applications
Enhance your power management systems by purchasing the STMicroelectronics STP13NM60ND power MOSFET online. This robust device provides exceptional switching efficiency with a low Rds(on) of 0.32 Ω, high voltage capacity of 600 V, and a pulsed drain current of 44 A. Suitable for demanding industrial applications, its high avalanche energy and thermal stability ensure long-lasting performance. Quick delivery and secure online ordering make it easy to upgrade your power modules today.
Buy STMicroelectronics STP13NM60ND now and experience unmatched reliability and high-efficiency switching performance for industrial power solutions.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STP13NM60ND?
You can click on the BUY or RFQ button to purchase STP13NM60ND from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STP13NM60ND?
You can download the STP13NM60ND datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STP13NM60ND?
STMICROELECTRONICS
