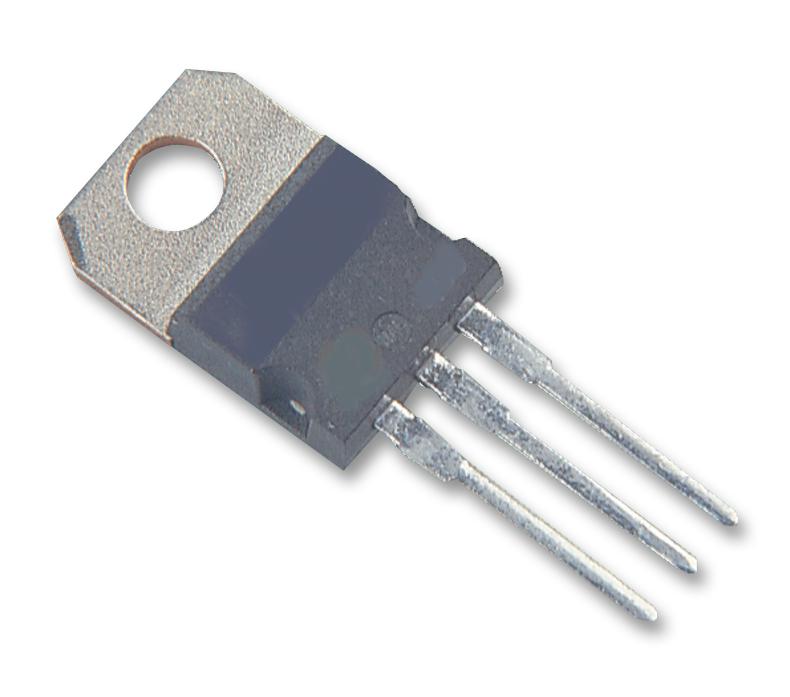

STMICROELECTRONICS STP8N90K5 High-Voltage Power MOSFET
The high-voltage N-channel Power MOSFET designed with MDmesh™ K5 technology offers a remarkable reduction in on-resistance and ultra-low gate charge for high-efficiency, high-power density applications. Encased in a TO-220 package, it is optimized for switching applications requiring superior power handling, low conduction losses, and excellent avalanche robustness. Its features include a 900 V drain-source voltage, 8 A continuous drain current at 25°C, and a low Rds(on) of 0.68 Ω. This device is ideal for industrial power supply, motor control, and power conversion systems demanding reliable performance and robust protection.
STMICROELECTRONICS STP8N90K5 High-Voltage Power MOSFET Specifications:
- Drain-source Voltage: 900 V
- Continuous Drain Current: 8 A at Tc = 25°C
- Pulsed Drain Current: 32 A
- Drain-source On-Resistance (Rds(on)): 0.68 Ω (typ.) at Vgs=10V
- Gate Threshold Voltage: 3-4-5 V
- Gate-Source Zener Breakdown Voltage: 30 V
- Gate Charge (Qg): 48 nc
- Input Capacitance (Ciss): 426 pF
- Output Capacitance (Coss): 4 pF
- Reverse Transfer Capacitance (Crss): 1.2 pF
- Thermal Resistance junction-case: 0.96 °C/W
- Maximum Operating Junction Temperature: 150°C
- Package: TO-220 Type A
- Repetitive Avalanche Current: 27 A
- Gate-Source Breakdown Voltage: 30 V
Buy the STMicroelectronics STP8N90K5 – Reliable Power MOSFET for Industrial Applications
Order the reliable high-voltage power MOSFET designed for industrial applications. With 900 V drain-source voltage, 8 A continuous current, and ultra-low gate charge, it ensures high efficiency and power density. Encased in a durable TO-220 package, this device offers excellent avalanche robustness, low Rds(on), and superior thermal performance. Ideal for power supplies, motor controls, and power conversion systems requiring robust switching performance and long-term reliability. Purchase online for fast delivery and trusted quality.
Get STMicroelectronics STP8N90K5 today—built for precision, high voltage switching, and long-lasting durability.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STP8N90K5?
You can click on the BUY or RFQ button to purchase STP8N90K5 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STP8N90K5?
You can download the STP8N90K5 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STP8N90K5?
STMICROELECTRONICS
