STMICROELECTRONICS SMB15F13A Surge Suppressor
The SMB15FxxA series are high-performance unidirectional TVS diodes designed to protect sensitive circuits against high-energy surges. Utilizing planar technology, these devices offer low leakage current, high junction temperature tolerance up to 175°C, and a flat, thin package of just 1 mm. Rated for peak pulse power of 1500 W (10/1000 ps) and 10 kW (8/20 us), they comply with industry standards including UL94 VO, J-STD-020, and IEC 61000-4-2. Ideal for high-reliability applications requiring compactness, robust surge suppression, and excellent environmental compliance.
STMICROELECTRONICS SMB15F13A Surge Suppressor Specifications:
- Peak pulse power: 1500 W (10/1000 ps) and 10 kW (8/20 us)
- Stand-off voltage range: from 5 V to 64 V
- Maximum leakage current: 0.2 UA at 25 °C and 1 UA at 85 °C
- Maximum operating junction temperature: 175°C
- Package: Flat, thin (1 mm), JEDEC registered outline
- Lead finishing: matte tin plating, compliant with UL94 VO
- Soldering temperature max: 260°C for 10 seconds
- Certified to IEC 61000-4-2 level 4, contact discharge 30 kV, air discharge 30 kV
- Meets industry standards including J-STD-020 MSL level 1 and MIL-STD-750
- High power capability at maximum Tj: 1100 W at 10/1000 ps pulse duration
- Designed with planar technology for low leakage and high reliability
- Dimensions: typical dimensions and mechanical data as per JEDEC SMB Flat package outline

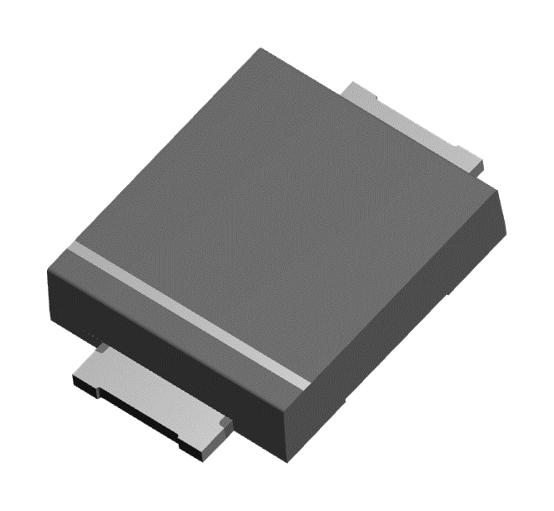

Buy the STMicroelectronics SMB15F13A – Reliable Surge Suppressor for Industrial Applications
Purchase the STMicroelectronics SMB15F13A surge suppressor online now. Designed for high-energy surge protection, this unidirectional TVS diode features 1500 W peak pulse power, a compact 1 mm flat package, and excellent compliance with industry standards. Its low leakage current and high junction temperature tolerance ensure reliable performance in sensitive electronics and industrial equipment. Ideal for applications requiring compact, reliable, and high-power surge suppression, this device offers long-term stability and exceptional environmental compliance for demanding industrial settings.
Get STMicroelectronics SMB15F13A today—built for precision, high surge power, and long-lasting durability in critical circuit protection.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS SMB15F13A?
You can click on the BUY or RFQ button to purchase SMB15F13A from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part SMB15F13A?
You can download the SMB15F13A datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of SMB15F13A?
STMICROELECTRONICS
