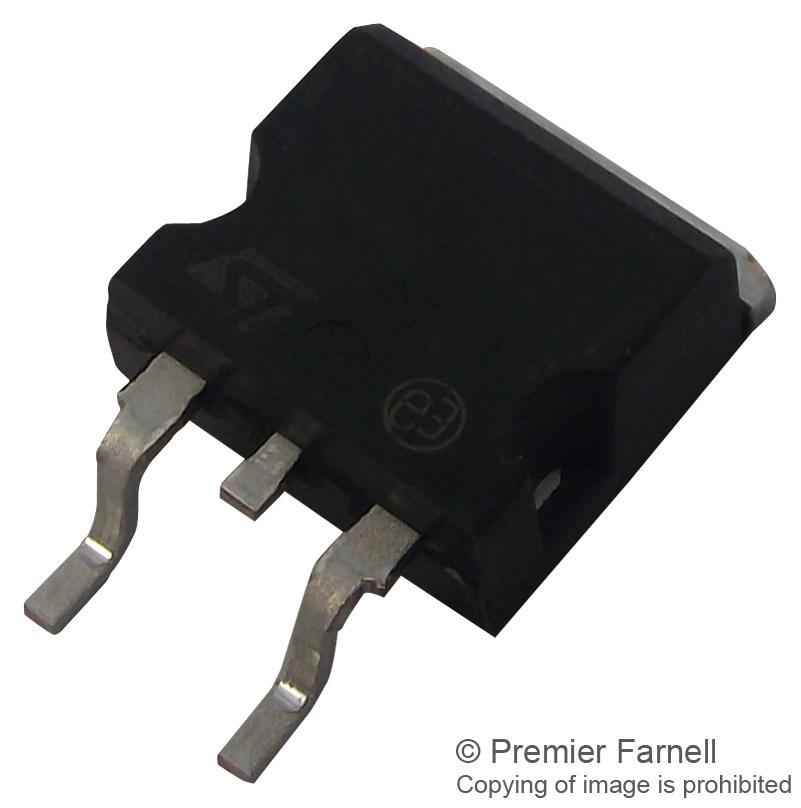

STMICROELECTRONICS STPSC10H12GTR Silicon Carbide Diode
The STPSC10H12 is a high-performance 1200 V silicon carbide Schottky diode designed for power applications such as PFC and secondary side circuits. Available in TO-220AC, DPAK HV, and D?PAK packages, it offers negligible reverse recovery, high surge current capability, and stable performance across a wide temperature range. Manufactured with silicon carbide substrate, it ensures low forward voltage drop and minimal ringing, ideal for hard switching conditions. Its robust construction extends device longevity and reduces switching losses, making it well-suited for demanding power conversion and industrial applications.
STMICROELECTRONICS STPSC10H12GTR Silicon Carbide Diode Specifications:
- Repetitive peak reverse voltage: 1200 V
- Forward rms current: 25 A
- Average forward current Tc = 155°C: 10 A
- Repetitive peak forward current at 155°C: 38 A
- Surge non-repetitive (tp=10 ms): 60 A
- Forward voltage drop at 10A: 1.35 V (typ), 1.75 V (max) at 150°C
- Reverse leakage current: 135 nA (typ at Vr=800V, 25°C), 400 nA (max at Vr=800V, 150°C)
- Junction temperature range: -40°C to +175°C
- Storage temperature: -65°C to +175°C
- Thermal junction to case resistance: 0.65°C/W (typ), 0.9°C/W (max)
- Capacitance at Vr=800V: 47 pF (typ), 57 pF (max)
- Qualified for high temperature operation up to 175°C
- Manufactured in environmentally compliant ECOPACK® package standards
Buy the Buy STMicroelectronics STPSC10H12GTR Part Number 1200 V Silicon Carbide Schottky Diode Online
Enhance your power conversion systems with the high-performance silicon carbide diode offering 1200 V voltage rating. Available in various packages, it delivers negligible reverse recovery, high surge current capacity, and stable operation across temperatures. Ideal for PFC, industrial, and secondary side applications, this diode ensures low switching losses and durability in demanding environments. Purchase online today to benefit from fast delivery and trusted quality that boosts efficiency and system robustness in your electronic designs.
Buy STMicroelectronics STPSC10H12GTR now and experience unmatched reliability and performance with robust high voltage power switching capabilities.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STPSC10H12GTR?
You can click on the BUY or RFQ button to purchase STPSC10H12GTR from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STPSC10H12GTR?
You can download the STPSC10H12GTR datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STPSC10H12GTR?
STMICROELECTRONICS
