STMICROELECTRONICS STTH16L06CFP High Voltage Rectifier
The STTH16L06C is an ultrafast high voltage rectifier using ST Turbo 2 600V technology. Designed for switching power supplies and industrial applications, it features ultrafast switching, low reverse recovery current, and reduced switching and conduction losses. Suitable for rectification and discontinuous mode PFC boost diode operations, it offers high peak repetitive reverse voltage of 600V, maximum forward rms current of 30A, and excellent thermal performance with various package options including TO-220AB and DPAK. The device ensures reliable and efficient power rectification with low forward voltage drop and fast recovery times, making it ideal for high-speed switching applications.
STMICROELECTRONICS STTH16L06CFP High Voltage Rectifier Specifications:
- Repetitive peak reverse voltage: 600 V
- Forward rms current: 30 A
- Average forward current (per diode): 10 A at 130°C
- Surge non-repetitive forward current: 120 A
- Maximum junction temperature: 175°C
- Storage temperature range: -65°C to +175°C
- Thermal resistance junction to case: 25°C/W (TO-220AB), 5°C/W (TO-220FPAB)
- Forward voltage drop (T=25°C, I=16A): 2.08 V
- Reverse leakage current (T=150°C, VR=25V): 25mA
- Recovery time (T=25°C): 35 ns
- Package options: TO-220AB, DPAK, TO-220FPAB
- Recommended torque: 0.4 to 0.6 N-m
- EcoPack compliant with environmental standards

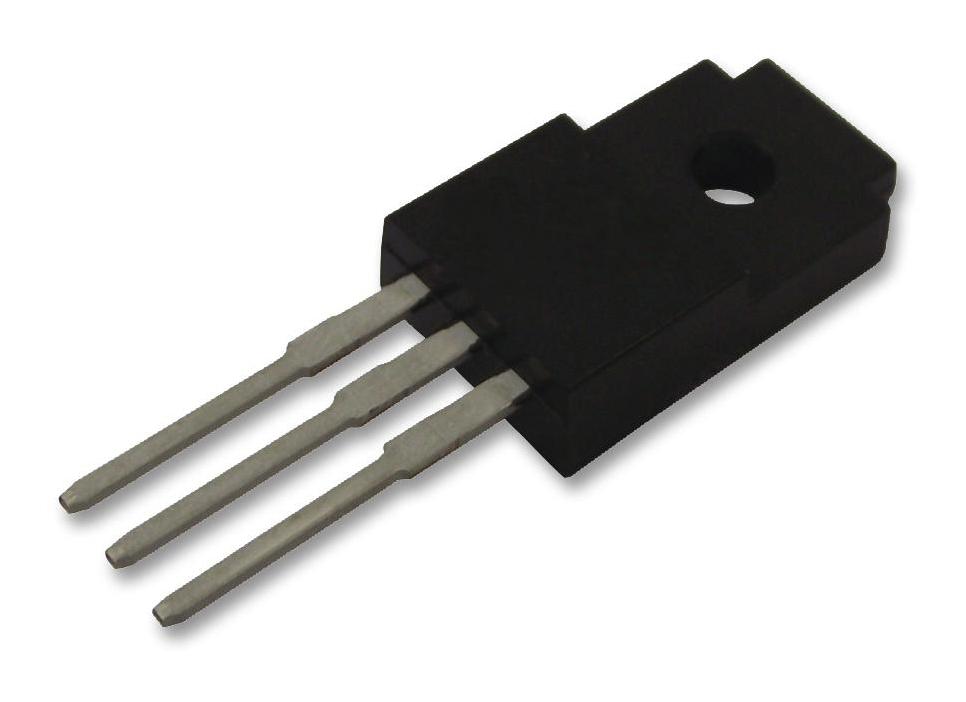

Buy the ST Microelectronics Series Turbo 2 High Voltage Rectifier: STTH16L06CFP
Purchase the STTH16L06CFP online today to ensure your power supply and industrial applications benefit from ultrafast switching, high peak voltage handling, and excellent thermal performance. Designed with advanced Turbo 2 technology, this rectifier delivers reliable, precise rectification with low forward voltage drop and fast recovery times. Ideal for switching power supplies, PFC circuits, and industrial rectifiers, it guarantees high efficiency, durability, and stability, making it the perfect choice for your high-voltage power management needs. Buy online now to upgrade your electronic systems effortlessly.
Get ST Microelectronics STTH16L06CFP today—built for precision, high voltage efficiency, and long-lasting durability with ultrafast switching capabilities.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STTH16L06CFP?
You can click on the BUY or RFQ button to purchase STTH16L06CFP from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STTH16L06CFP?
You can download the STTH16L06CFP datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STTH16L06CFP?
STMICROELECTRONICS
