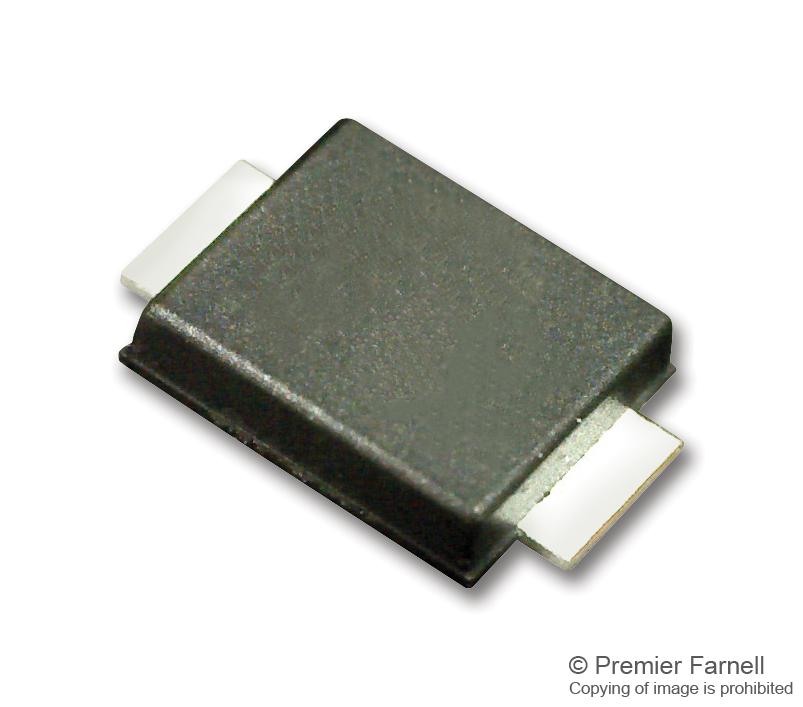

STMICROELECTRONICS STTH2R06UFY Automotive High Voltage Rectifier
The STTH2R06-Y is an ultrafast recovery power rectifier designed for energy recovery in automotive applications, housed in SMBflat for space-saving. It features 600V reverse voltage, 2A forward current, and low switching losses, making it ideal for clamping functions in energy recovery blocks. With a maximum junction temperature of 175°C and a low forward voltage drop of 11V, it offers high surge capability and is AEC-Q101 qualified. Its compact SMBflat package ensures reliable and efficient operation in demanding automotive environments.
STMICROELECTRONICS STTH2R06UFY Automotive High Voltage Rectifier Specifications:
- Maximum Repetitive Peak Reverse Voltage: 600 V
- Maximum Average Forward Current: 2 A
- Maximum Forward Surge Current: 28 A
- Storage Temperature Range: -65°C to +175°C
- Operating Temperature Range: -40°C to +175°C
- Junction to Lead Thermal Resistance: 18°C/W
- Maximum Reverse Leakage Current at 600 V: 85 µA at 150°C
- Forward Voltage Drop at 2A: Typical 1.4 V at 150°C
- Reverse Recovery Time: 50 ns (typical)
- Package Type: SMBflat in lead-free epoxy, meets UL94V-0 standards
- Dimensions (approximate): A=0.90–1.10mm, b=1.95–2.20mm, c=0.15–0.40mm, D=3.30–3.95mm, E=5.10–5.60mm, Et=4.05–4.60mm, L=0.75–1.50mm, L2=0.60mm
Buy the STMicroelectronics STTH2R06-U2013 Reliable High Voltage Rectifier for Automotive Applications
Purchase the STTH2R06 ultrafast high voltage rectifier online today for your automotive energy recovery projects. Designed for space-efficient SMBflat packaging, it ensures reliable performance with 600V reverse voltage and 2A forward current. This AEC-Q101 qualified component offers low reverse leakage, high surge capability, and fast recovery times, making it ideal for demanding automotive systems. Enhance your energy recovery block efficiency and ensure long-term durability by ordering online now.
Get STMicroelectronics STTH2R06-UFY today—built for precision and long-lasting durability in automotive energy recovery systems.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STTH2R06UFY?
You can click on the BUY or RFQ button to purchase STTH2R06UFY from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STTH2R06UFY?
You can download the STTH2R06UFY datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STTH2R06UFY?
STMICROELECTRONICS
