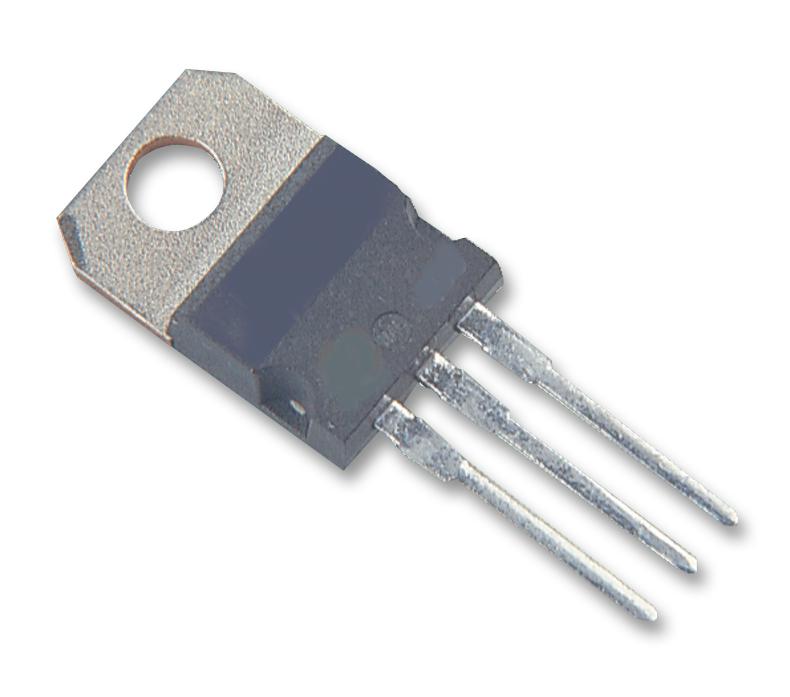

STMICROELECTRONICS STTH8L06FP High-Speed Rectifier
The STTH8L06FP is a turbo 2 ultrafast high-voltage rectifier designed primarily as a boost diode for discontinuous or critical mode power factor correction systems. It serves effectively as a freewheeling diode in power supplies and other power switching applications. Features include low reverse recovery current, low thermal resistance, and reduced switching and conduction losses. It is suitable for industrial and power management applications. Note: Due to high market demand, lead times may be extended, and delivery dates are uncertain. The product is exempt from discounts.
STMICROELECTRONICS STTH8L06FP High-Speed Rectifier Specifications:
- Maximum repetitive reverse voltage: 600 V
- Average forward current: 8 A
- Surge non-repetitive forward current: 120 A
- Junction temperature range: -40 to 175°C
- Thermal resistance junction to case: 25 °C/W
- Forward voltage drop: 0.85 V at 8 A
- Recovery time: 75 to 105 ns
- Package options: TO-220AC, TO-220FPAC, D2PAK, Insulated TO-220AC
- Insulation voltage: TO-220AC 2500 V rms, TO-220FPAC 2000 V DC
- Recommended torque for mounting: 0.4 to 0.6 N-m
Buy the STMicroelectronics Series Turbo 2 Ultrafast High Voltage Rectifier: STTH8L06FP
Purchase the STMicroelectronics Turbo 2 ultrafast high-voltage rectifier online today to enhance power correction and switching efficiency. Designed for boost diodes, freewheeling applications, and power supplies, this device features low reverse recovery, improved thermal management, and versatile packaging options including TO-220AC, TO-220FPAC, and D2PAK. With a maximum repetitive reverse voltage of 600 V and a forward current of 8 A, it offers robust performance in industrial and power management systems. Ensure reliable operation with this high-speed, low-loss rectifier device for your critical power circuits.
Get STMicroelectronics STTH8L06FP today—built for high-speed switching and reliable power management.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STTH8L06FP?
You can click on the BUY or RFQ button to purchase STTH8L06FP from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STTH8L06FP?
You can download the STTH8L06FP datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STTH8L06FP?
STMICROELECTRONICS
