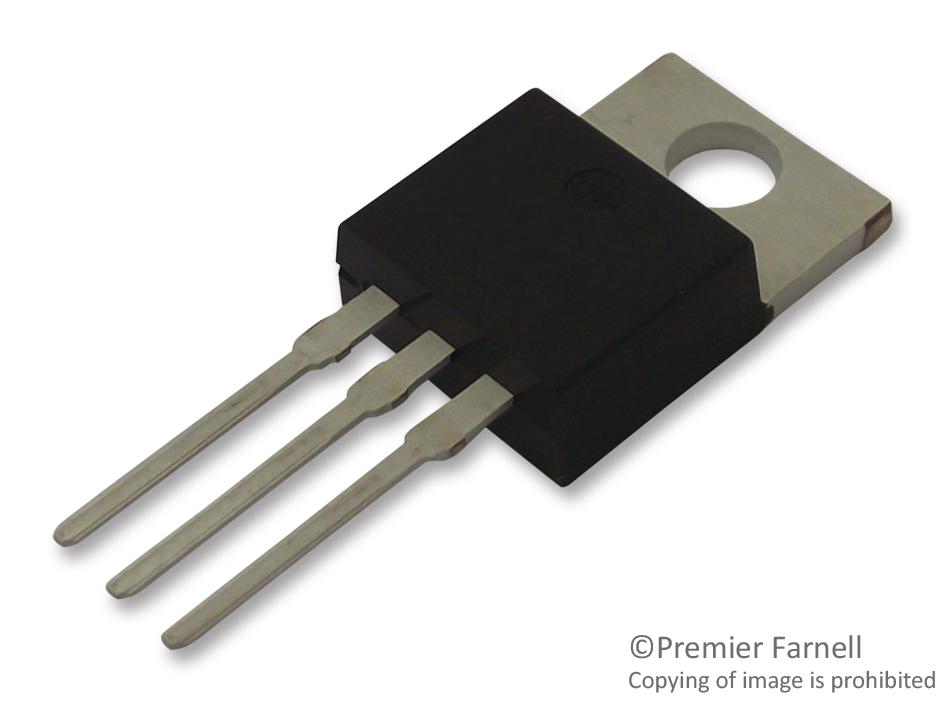

STMICROELECTRONICS T1210T8T industrial Triac
The T1210T-8T is a medium current Triac designed for general purpose AC switching applications such as motor control, lighting, and inrush current limiting. It features a 12 A on-state rms current, withstands voltages up to 800 V, and can be directly driven by microcontrollers due to its low gate current requirement of 10 mA. Suitable for use in small home appliances, overvoltage protection, and phase angle control, the device complies with ECOPACK®2 standards, ensuring environmental safety and reliable operation in diverse industrial environments.
STMICROELECTRONICS T1210T8T industrial Triac Specifications:
- On-state rms current: 12 A at 131°C
- Peak repetitive surge current: 90 A at 50Hz, 20ms
- Off-state voltage: 900 V (non-repetitive), 800 V (repetitive)
- Gate trigger current: 10 mA
- Maximum junction temperature: 150°C
- Storage temperature range: -40°C to +150°C
- Package: TO-220AB
- Maximum lead temperature for soldering: 260°C for 10 seconds
- Voltage: 800 V (VDRM), 900 V (VDSM)
- Power dissipation: Not explicitly specified, but designed for industrial robustness
- Dimensional: Refer to TO-220AB dimensions with maximum lengths approximately 4.6 mm (A), width 0.88 mm (b), and height 6.60 mm (H1)
Buy the STMicroelectronics T1210T-8T – Reliable Triac for Industrial Applications
Purchase the STMicroelectronics T1210T-8T Triac online and experience reliable AC switching with high current capacity and voltage ratings. Perfect for motor control, lighting, and appliances, this device features a 12 A rms current, withstands up to 800 V, and is compatible with microcontrollers due to its low gate trigger current of 10 mA. By choosing this compliant and environmentally friendly ECOPACK®2 device, you ensure durable, efficient, and safe operation in various industrial and residential applications. Order now for fast worldwide delivery.
Get STMicroelectronics T1210T-8T today—built for precision, durability, and efficient AC switching in industrial environments.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS T1210T8T?
You can click on the BUY or RFQ button to purchase T1210T8T from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part T1210T8T?
You can download the T1210T8T datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of T1210T8T?
STMICROELECTRONICS
