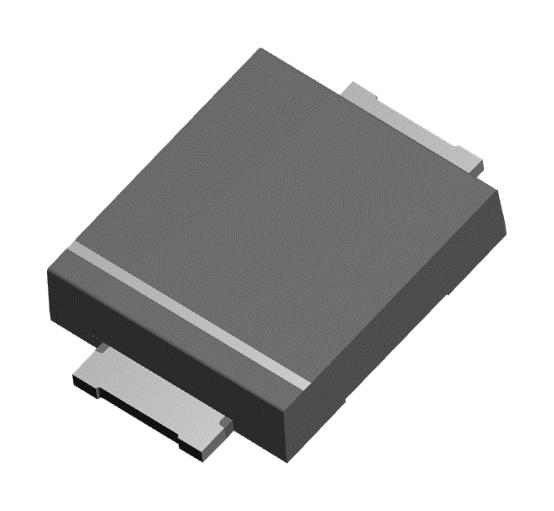

STMICROELECTRONICS SMB15F26A Surge Protection Diode
The SMB15F26A series are high-power TVS diodes with a peak pulse power dissipation of 1500 W (10/1000 ps). They feature a flat, thin package measuring 1 mm, with stand-off voltages ranging from 5 V to 64 V. Designed to protect sensitive circuits from surges, these unidirectional devices have low leakage current of 0.2 UA at 25°C and operate up to 175°C. They comply with UL94 and IEC 61000-4 standards, ensuring reliability in high-end applications with high junction temperature requirements.
STMICROELECTRONICS SMB15F26A Surge Protection Diode Specifications:
- Peak pulse power: 1500 W (10/1000 ps)
- Flat and thin package: 1 mm
- Stand-off voltage range: 5 V to 64 V
- Unidirectional type
- Low leakage current: 0.2 UA at 25°C
- Maximum operating junction temperature: 175°C
- Peak pulse power at Tj max.: 1100 W
- Lead finishing: matte tin plating
- Standards compliance: UL94 VO, IEC 61000-4-4 level 4
- Peak pulse voltage: contact discharge 30 kV, air discharge 30 kV
- Maximum lead temperature during soldering: 260°C for 10 s
Buy the Buy STMicroelectronics SMB15F26A Part Number 1500W TVS Diode Online
Ensure maximum surge protection with the high-power SMB15F26A diode, rated for 1500 W peak pulse power. This unidirectional TVS diode features a compact 1 mm flat package, wide stand-off voltage from 5 V to 64 V, and low leakage current for reliable long-term operation. Ideal for sensitive electronic circuits requiring high junction temperatures up to 175°C, it complies with industry standards to guarantee safety and durability. Perfect for industrial, automotive, and communication applications seeking robust surge suppression.
Get STMicroelectronics SMB15F26A today—built for surge protection in high-temperature circuits and high power capability at 1500 W pulse power.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS SMB15F26A?
You can click on the BUY or RFQ button to purchase SMB15F26A from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part SMB15F26A?
You can download the SMB15F26A datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of SMB15F26A?
STMICROELECTRONICS
