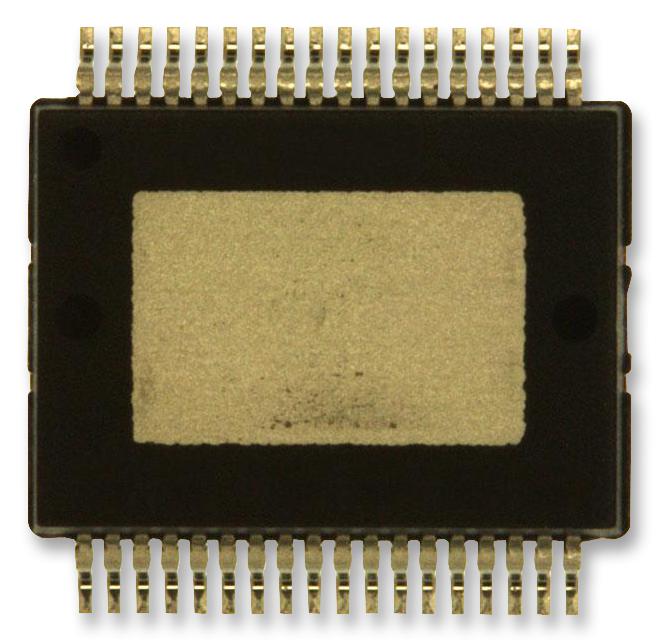

STMICROELECTRONICS TDA7498LTR Dual Power Amplifier
The TDA7498L is a dual BTL class-D audio amplifier designed for high-efficiency sound output in home and active speaker systems. It offers up to 80 W + 80 W power at 10% THD, suitable for various audio applications. The device features differential inputs to minimize noise, protection functions including short-circuit, thermal overload, and overvoltage protection. Packaged in a PowerSSO-36 with exposed pad, it supports wide supply voltage range (14-36 V), multiple gain settings, external clock synchronization, and built-in mute and standby modes, ensuring reliable and flexible audio amplification.
STMICROELECTRONICS TDA7498LTR Dual Power Amplifier Specifications:
- Power Output: 80 W + 80 W at 10% THD, 70 W + 70 W at 10% THD
- Supply Voltage Range: 14 V to 36 V
- Package: PowerSSO-36 with exposed pad
- Thermal Resistance: 2.3 °C/W junction-to-case
- Operating Temperature: -40°C to 85°C
- THD: 10% at rated power
- Gain Settings: 25.6 dB, 31.6 dB, 35.1 dB, 37.6 dB
- Input Impedance: 48-60 kΩ differential
- Protection: Short-circuit, thermal overload, overvoltage, undervoltage
- Clock Mode: Internal and external clock options via SYNC and ROSC pins
- Features: Differential inputs, mute, standby, diagnostic output, high efficiency
Buy the STMicroelectronics Series PowerSSO-36 TDA7498L: 80W Dual Class-D Amplifier
Enhance your audio system with the STMicroelectronics Series PowerSSO-36 TDA7498L, a high-efficiency dual class-D amplifier capable of delivering 80W + 80W output power. It features differential inputs, various gain settings, and comprehensive protection functions, making it ideal for home audio and active speaker applications. The package includes an exposed pad for effective heatsinking, ensuring reliable operation over a wide temperature range. Order online today to access this versatile, high-performance audio amplification solution for your projects.
Order your STMicroelectronics Series PowerSSO-36 TDA7498L today and give your audio projects dependable high-power performance with advanced protection features.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS TDA7498LTR?
You can click on the BUY or RFQ button to purchase TDA7498LTR from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part TDA7498LTR?
You can download the TDA7498LTR datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of TDA7498LTR?
STMICROELECTRONICS
