STMICROELECTRONICS TSC1021BIPT High-Side Current Sense Amplifier
The TSC1021BIPT is a high-side current sense amplifier designed for automotive and industrial applications. It features an independent input common-mode range of 2.8 V to 30 V, with a maximum load dump protection of up to 60 V and reverse-battery protection up to -32 V. Its internally fixed gain options are 20 V/V and 50 V/V, with EMI filtering for enhanced performance. The device operates from a 3.5 V to 5.5 V supply, has a low input bias current of 7 µA, and a total supply current of 450 µA at 50 mV sensing. It is housed in an 8-pin TSSOP package and is suitable for automotive current monitoring, power supplies, and LED current measurement.
STMICROELECTRONICS TSC1021BIPT High-Side Current Sense Amplifier Specifications:
- Supply Voltage: 3.5 to 5.5 V
- Input common-mode range: 2.8 to 30 V (absolute max 60 V)
- Gain options: 20 V/V and 50 V/V
- Input offset voltage: 23 mV
- Input bias current: 7 µA
- Total supply current: 450 µA at 50 mV sense
- Maximum differential voltage: +20 V
- Maximum input voltage: -32 V to 60 V
- Operating temperature: -40 °C to 125 °C
- Package: TSSOP8
- EMI filtering integrated
- Load dump protection: up to 60 V
- Reverse-battery protection: up to -32 V
- ESD protection: up to 4 kV
- Thermal resistance junction to ambient: 120 °C/W

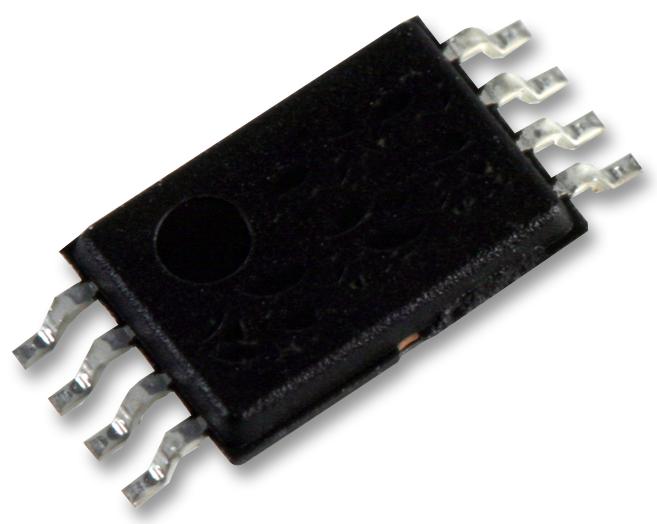

Buy the Buy STMicroelectronics TSC1021BIPT High-Side Current Sense Amplifier Part Number TSC1021BIPT Online
Enhance your automotive or industrial circuits with the TSC1021BIPT high-side current sense amplifier. Featuring a wide input voltage range, fixed gain options of 20 V/V and 50 V/V, and built-in EMI filtering, this compact TSSOP8 device offers reliable load dump and reverse battery protection up to 60 V and -32 V respectively. Operating from 3.5 V to 5.5 V with ultra-low supply current of 450 µA at 50 mV sensing, it ensures precise current measurements in demanding environments. Ideal for automotive monitoring, power supplies, and LED current measurement, it provides robust performance with thermal and ESD protections.
Buy STMicroelectronics TSC1021BIPT high-side current sense amplifier now and experience unmatched automotive load-dump protection and EMI filtering for reliable monitoring.
