STMICROELECTRONICS TSH82IYDT High-Speed Operational Amplifier
The TSH82IYDT is a high-performance, rail-to-rail operational amplifier designed for professional video, high-speed signal processing, and drive applications. Featuring a 100 MHz bandwidth at -3 dB, low distortion THD of 0.1%, and high output current capability of 55 mA, it supports various supply voltages from 4.5 to 12 V. Its standby mode offers low power consumption, making it ideal for space-constrained, high-speed analog circuits requiring excellent supply rejection and large output voltage swings.
STMICROELECTRONICS TSH82IYDT High-Speed Operational Amplifier Specifications:
- Supply Voltage Range: 4.5 to 12 V
- Bandwidth: 100 MHz at -3 dB
- Total Harmonic Distortion: 0.1%
- Output Current Capability: 55 mA
- Input Offset Voltage: 1.1 to 12 mV
- Input Bias Current: 3 to 18 μA
- Input Capacitance: 0.7 pF
- Output Voltage Swing: Rail-to-rail support
- Gain Bandwidth Product: 65 MHz (Av = +11), 55 MHz (Av = -10)
- Slew Rate: 104 V/μs (at 5 V supply)
- Total Harmonic Distortion (THD): -61 dB at 1 Vpp
- Operating Temperature: -40°C to +85°C
- Package Types: SOT23-5, SO8, TSSOP8, TSSOP14
- Standby Mode Current: 55 μA at Pin 8
- Package Dimensions: SOT23-5 (A=1.2 mm), SO8 (A=1.75 mm), TSSOP8 (A=1.2 mm), TSSOP14 (A=1.2 mm)

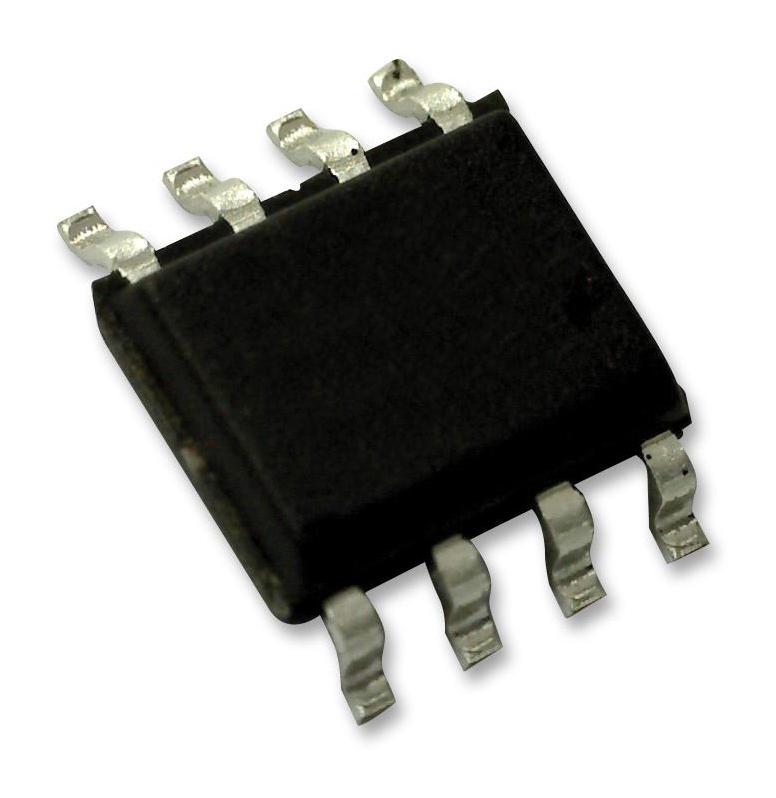

Buy the Buy STMicroelectronics TSH82IYDT Part Number online
Enhance your electronic designs with the STMicroelectronics TSH82IYDT high-speed, rail-to-rail operational amplifier. Offering 100 MHz bandwidth, low distortion, and 55 mA output current, it excels in video buffers, A/D driver applications, and high-fidelity circuits. Its compact SOT23-5, SO8, TSSOP8, and TSSOP14 packages make it suitable for space-constrained projects. The device supports a wide supply voltage range from 4.5 to 12 V and includes a low power standby mode that reduces consumption to only 55 microamps, ensuring high efficiency without compromising performance.
Buy STMicroelectronics TSH82IYDT now and experience unmatched reliability and high-speed performance for your professional video and signal processing circuits.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS TSH82IYDT?
You can click on the BUY or RFQ button to purchase TSH82IYDT from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part TSH82IYDT?
You can download the TSH82IYDT datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of TSH82IYDT?
STMICROELECTRONICS
