STMICROELECTRONICS XNUCLEONFC03A1 NFC Card Reader

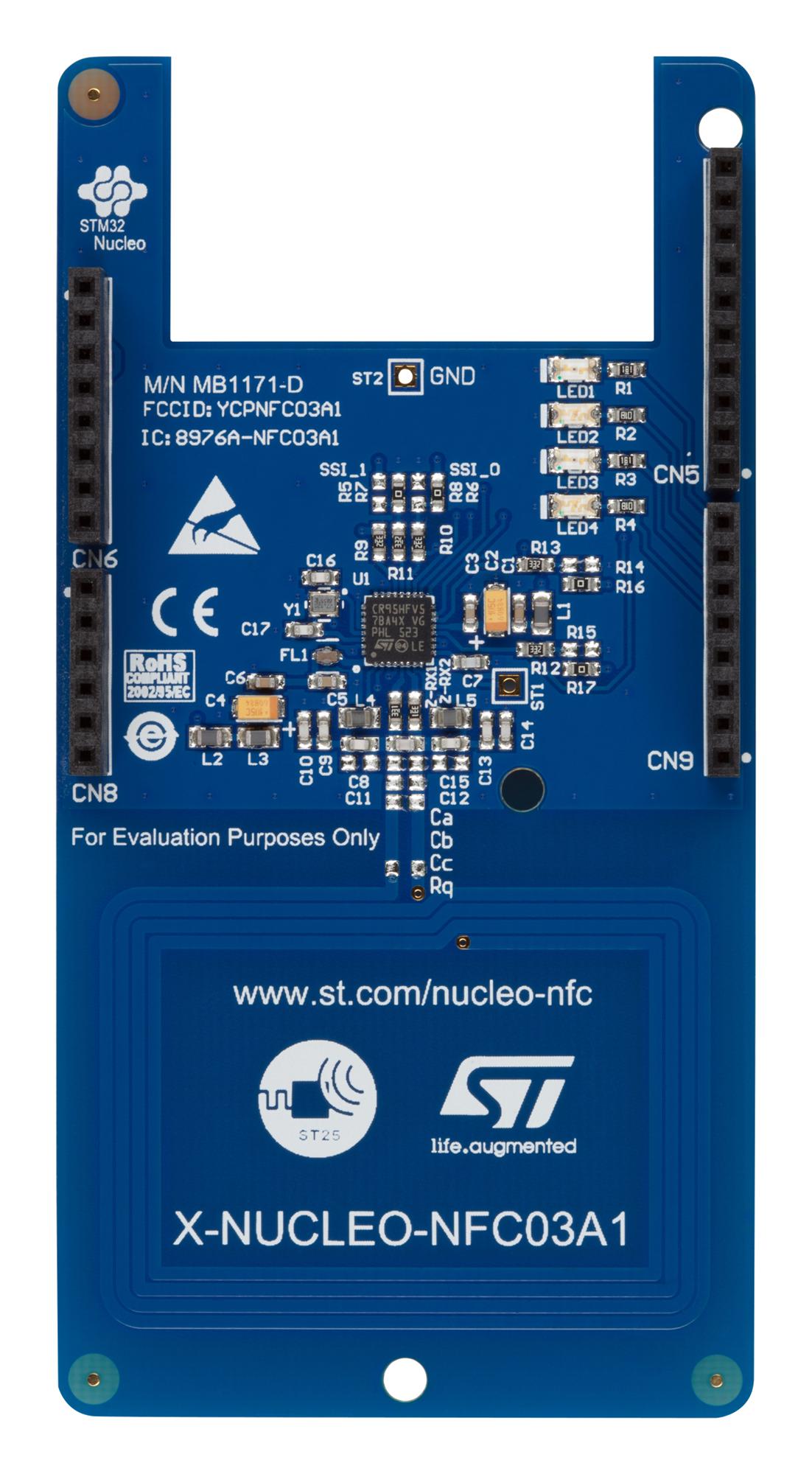

The X-NUCLEO-NFC03A1 is an NFC card reader evaluation board based on CR95HF, designed to expand STM32 Nucleo systems. It supports multiple NFC standards including ISO/IEC 14443 (A/B), ISO/IEC 15693, and ISO/IEC 18092, and is compatible with MIFARE Classic technology. Featuring a 47 mm x 34 mm etched inductive antenna operating at 13.56 MHz, it enables NFC communication, proximity and vicinity standards, tag reading and writing. The board includes Arduino UNO R3 connectors, LEDs for status indication, and can be cascaded for larger systems, with a comprehensive firmware library for easy development.
STMICROELECTRONICS XNUCLEONFC03A1 NFC Card Reader Specifications:
- Operating Frequency: 13.56 MHz
- Antenna Size: 47 mm x 34 mm
- Supported Protocols: ISO/IEC 14443 A/B, ISO/IEC 15693, ISO/IEC 18092
- Compatibility: MIFARE Classic
- Communication Interfaces: SPI, UART
- Power Supply: Nucleo board power (3.3V)
- Connectivity: Arduino UNO R3 connector
- Dimensions: 47 mm x 34 mm
- Features: Four general purpose LEDs, scalable for cascading multiple boards
- Certifications: FCC, RoHS compliant
- Firmware: Free development library with examples
Buy the STMicroelectronics Series NFC Reader: X-NUCLEO-NFC03A1
Enhance your NFC applications with the X-NUCLEO-NFC03A1, a versatile expansion board supporting multiple NFC standards including ISO/IEC and MIFARE. Designed for STM32 Nucleo systems, it features a compact antenna, Arduino UNO R3 compatibility, and scalable architecture for larger deployments. The onboard LEDs help monitor operations while the comprehensive firmware library accelerates development. Perfect for proximity and vicinity NFC projects, this board provides reliable communication, easy integration, and certification support, making it ideal for developing advanced NFC-enabled solutions.
Get STMicroelectronics X-NUCLEO-NFC03A1 today—built for seamless NFC communication and scalable system integration.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS XNUCLEONFC03A1?
You can click on the BUY or RFQ button to purchase XNUCLEONFC03A1 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part XNUCLEONFC03A1?
You can download the XNUCLEONFC03A1 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of XNUCLEONFC03A1?
STMICROELECTRONICS
