STMICROELECTRONICS STWA65N60DM6 High-Voltage Power MOSFET
These high-voltage N-channel Power MOSFETs are designed for demanding switching applications, featuring very low recovery charge, fast-recovery body diode, and excellent switching behavior. They are suitable for high-efficiency bridge topologies and ZVS converters, with high avalanche ruggedness, low gate charge, and low Rds(on) per area. Available in TO-247 packages with long leads, they can handle voltages up to 600 V and continuous drain currents up to 38 A, making them ideal for high-power switching and industrial use.
STMICROELECTRONICS STWA65N60DM6 High-Voltage Power MOSFET Specifications:
- Drain-source voltage Vds: 600 V
- Drain current (continuous at 25°C): 38 A
- Drain current (continuous at 100°C): 24 A
- Pulsed drain current: 140 A
- Total dissipation at 25°C: 250 W
- Peak diode recovery voltage slope dv/dt: 50 V/μs
- MOSFET dv/dt ruggedness: 100 V/μs
- Storage temperature range: -55°C to 150°C
- Junction temperature range: -55°C to 150°C
- Thermal resistance junction-case: 50 °C/W
- Avalanche energy: 900 mJ
- Gate source voltage: ±20 V
- Gate threshold voltage: 3.25 V to 4.75 V
- Static drain-source on resistance Rds(on): varies with current load
- Capacitance: Ciss ~2500 pF, Coss ~125 pF, Crss ~4 pF
- Switching times: Turn-on ~22 ns, Turn-off ~56 ns

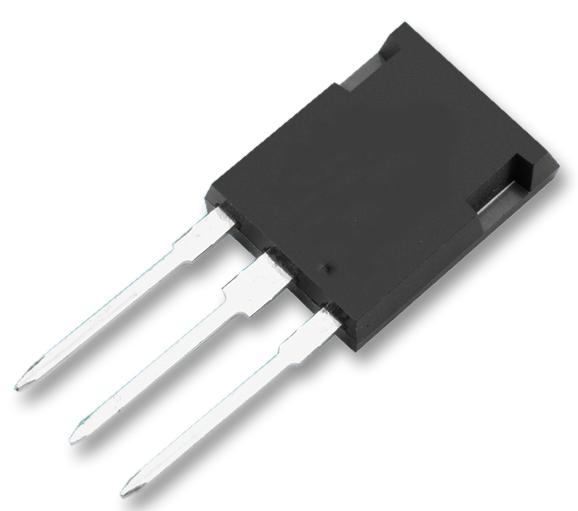

Buy the Buy STMicroelectronics High-Voltage Power MOSFET Part Number STWA65N60DM6 Online
Order the STMicroelectronics high-voltage Power MOSFET STWA65N60DM6 online today to ensure high efficiency and reliable switching in demanding industrial and power management applications. This MOSFET features a 600 V drain-source voltage, 38 A continuous drain current, and a fast-recovery diode, making it ideal for high-power inverters, converters, and bridging circuits. Its low Rds(on), excellent avalanche ruggedness, and thermal stability provide superior performance and longevity. Purchase now to enhance your project's effectiveness with trusted semiconductor technology.
Buy STMicroelectronics STWA65N60DM6 now and experience unmatched reliability and performance for high-power switching and industrial applications.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STWA65N60DM6?
You can click on the BUY or RFQ button to purchase STWA65N60DM6 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STWA65N60DM6?
You can download the STWA65N60DM6 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STWA65N60DM6?
STMICROELECTRONICS
