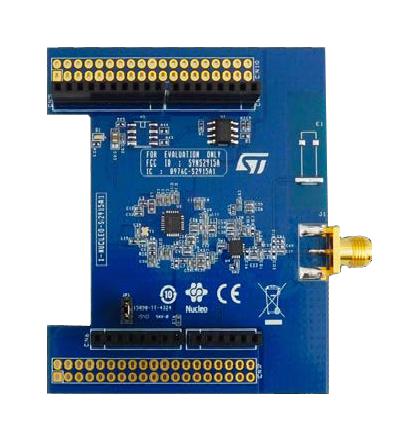

STMICROELECTRONICS XNUCLEOS2915A1 Wireless RF Module
The X-NUCLEO-S2915A1 is an RF expansion board based on the S2-LP radio, designed for STM32 Nucleo microcontroller systems. Operating in the 860-940 MHz band, it offers ultra-low power consumption with programmable output power up to +27 dBm. Featuring multiple modulation schemes, high receiver sensitivity of up to -130 dBm, and compatibility with wireless protocols like Sigfox, it supports applications such as wireless M-Bus and 6LoWPAN. The board connects via SPI and GPIOs, supports Arduino UNO R3, and includes sample firmware for P2P communication, making it ideal for IoT, automation, and remote sensing projects.
STMICROELECTRONICS XNUCLEOS2915A1 Wireless RF Module Specifications:
- Frequency Band: 860-940 MHz
- Transceiver: S2-LP radio, Programmable RF output power up to +27 dBm
- Modulation Schemes: 2-FSK, 2-GFSK, 4-FSK, 4-GFSK, OOK, ASK
- Air Data Rate: 0.1 to 500 kbps
- Power Consumption: 7 mA RX, 10 mA TX at +10 dBm
- Receiver Sensitivity: Up to -130 dBm
- Connectivity: SPI interface, GPIO, supports Arduino UNO R3 and ST morpho connectors
- Supported Protocols: IEEE 802.15.4g, Sigfox, wireless M-Bus, 6LoWPAN
- Operating Voltage: Typical 3.3V
- Certification: FCC ID: S9NS2915A, IC ID: 8976C-S2915A1
Buy the STMicroelectronics Series S2915A RF: XNUCLEOS2915A1
Purchase the STMicroelectronics Series S2915A RF wireless module online today and empower your IoT and remote sensing projects with reliable, low power sub-1 GHz communication. This versatile expansion board offers programmable output power up to +27 dBm, broad frequency coverage from 860 to 940 MHz, and supports protocols like Sigfox, wireless M-Bus, and 6LoWPAN. Compatible with STM32 Nucleo and Arduino UNO R3, it includes sample firmware for P2P and allows seamless integration into your designs. Experience high sensitivity and robust wireless features for your industrial, automation, or sensor applications.
Order your STMicroelectronics Series S2915A RF expansion board today and enhance your IoT projects with low power, high-performance wireless connectivity.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS XNUCLEOS2915A1?
You can click on the BUY or RFQ button to purchase XNUCLEOS2915A1 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part XNUCLEOS2915A1?
You can download the XNUCLEOS2915A1 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of XNUCLEOS2915A1?
STMICROELECTRONICS
