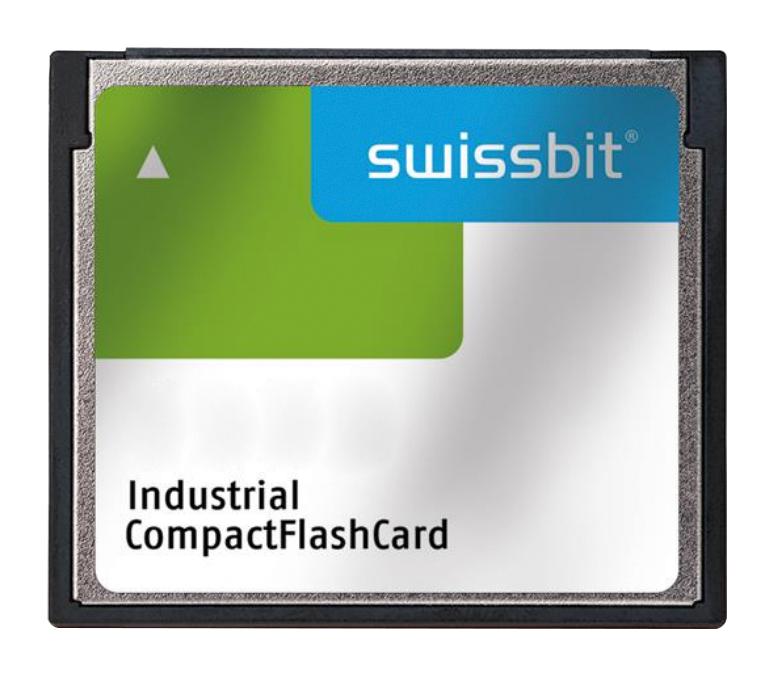

SWISSBIT SFCF0128H1AF1TOIMS527STD Industrial CompactFlash Card

The Swissbit C-500 is a high-capacity industrial CompactFlash memory card designed for reliable data storage and quick system boot times. It supports multiple modes including PC card ATA and True IDE with UDMA6, offering sequential read speeds up to 64 MB/s and endurance suitable for demanding industrial applications. Its robust design ensures operation in temperature ranges from -40°C to 85°C, with high reliability metrics such as MTBF over 3 million hours and data retention of 10 years. Features include wear leveling, bad block remapping, and integrated ECC for data integrity, making it ideal for embedded, logging, and critical data applications.

Swissbit SFCF0128H1AF1TO – Reliable Industrial CompactFlash Card for Critical Data Storage
View SFCF0128H1AF1TOIMS527STDDatasheet [pdf]
Authorized Distributors
Source:DigiKey
Part No:SFCF0128H1AF1TO-I-MS-527-STD
Stock:1
Inv Date:06-15-2026
Price: Unit price: $65.6
Buy/RFQ:
Source:Mouser Electronics
Part No:SFCF0128H1AF1TO-I-MS-527-STD
Stock:0
Inv Date:06-16-2026
Price: Unit price: $65.6
Buy/RFQ:

SWISSBIT SFCF0128H1AF1TOIMS527STD Industrial CompactFlash Card Specifications:

  • Capacity: 128 MBytes
  • Form Factor: CompactFlash Type I (36.4 mm x 42.8 mm x 3.3 mm)
  • Interface: PC Card ATA modes, True IDE UDMA6, MDMA2, PIO6
  • Sequential Read Speed: up to 64 MB/s
  • Sequential Write Speed: up to 44 MB/s
  • Random Read: up to 3,200 IOPS
  • Random Write: up to 1,900 IOPS
  • Operating Temperature Range: -40°C to 85°C
  • Storage Temperature Range: -50°C to 100°C
  • Power Supply: 3.3V +10%, 5V +10%
  • Current (Active): 100-120 mA
  • MTBF: > 3,000,000 hours
  • Data Retention: 10 years at beginning of life
  • Shock/Vibration: 1500 g / 20 g
  • Compliance: CE, RoHS, WEEE, FCC, UL
  • Physical Dimensions: Length 36.4 mm, Width 42.8 mm, Thickness 3.3 mm
  • Weight: Max 10 g
  • Endurance: > 409 TBW (enterprise workloads)

Buy the Swissbit SFCF0128H1AF1TO – Reliable Industrial CompactFlash Card for Critical Data Storage

Purchase the Swissbit industrial CompactFlash card SFCF0128H1AF1TO online today to ensure your critical data storage needs are met with high endurance, robust temperature ranges from -40°C to 85°C, and advanced features like wear leveling, ECC, and fast UDMA6 interface. Perfect for embedded systems, logging, and industrial automation, this reliable storage solution guarantees long-term data integrity, quick startup times, and operational safety. Secure your system's data today with Swissbit's trusted memory technology—order now for fast delivery and support.

Get Swissbit SFCF0128H1AF1TO today—built for durability, high performance, and reliable data retention in demanding industrial environments.
