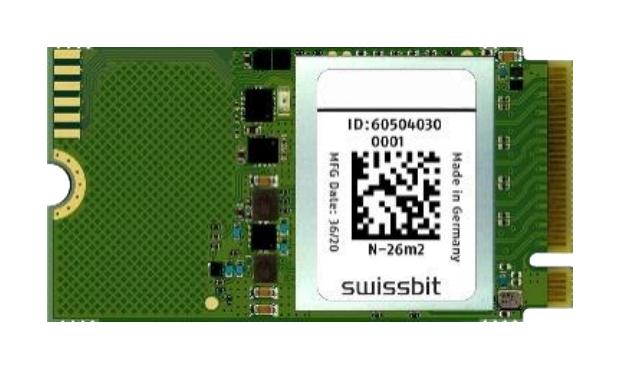

SWISSBIT SFPC005GM1EC1TOI5E11PSTD Industrial M.2 SSD
The Swissbit N-26m2 SSD is a high-performance industrial M.2 PCIe NVMe drive supporting capacities from 5GB to 160GB. It leverages advanced 3D TLC NAND flash with LDPC error correction and Swissbit’s Data Care Management for data integrity, endurance, and reliability. Features include dynamic and static wear leveling, AES256 encryption, end-to-end protection, and S.M.A.R.T. health monitoring. Designed for industrial environments, it operates between -40°C to 85°C, with robust shock and vibration resistance. Its compact form factor supports PCIe Gen3 x2/x4 interfaces, ensuring fast data transfer and durability.
SWISSBIT SFPC005GM1EC1TOI5E11PSTD Industrial M.2 SSD Specifications:
- Form Factor: M.2 2230/2242/2280 (standard sizes)
- Capacities: 5GB, 10GB, 20GB, 40GB, 80GB, 160GB
- Interface: PCIe Gen3 x2, x4, supports NVMe 1.3
- Sequential Read/Write: Up to 1773/827 MB/s
- Random Read/Write: Up to 140,000/131,000 IOPS
- Operating Temperature: -40°C to 85°C
- Storage Temperature: -40°C to 85°C
- Voltage: 3.3V, 1.8V, 0.9V
- Power Consumption: 440-810 mA depending on capacity
- Dimensions: 30/42/80 mm length x 22 mm width x 2.63 mm thickness
- Certifications: RoHS, REACH, WEEE, EMC, FCC
- MTBF: > 2,000,000 hours
- Data Retention: 10 years at 40°C, 1 year at EOL
- Endurance: Up to 1550 TBW (at 80GB capacity)
- Shock/Vibration: 1500 g / 50 g
- Encryption: AES256 (optional)
Buy the Buy Swissbit SSD Part Number SFPC005GM1EC1TOI5E11PSTD Online
Purchase the Swissbit industrial M.2 NVMe SSD supporting capacities from 5GB to 160GB online today. Designed for harsh environments, it offers high-speed data transfer with up to 1773 MB/s sequential read performance. Featuring advanced NAND technology, LDPC ECC correction, AES256 encryption, and robust thermal resilience, this compact drive ensures data integrity and durability in industrial applications. Its extensive temperature range of -40°C to 85°C, shock, and vibration resistance make it ideal for demanding embedded systems and high-reliability storage solutions. Secure your data with Swissbit’s trusted quality now.
Order your Swissbit Series SFPC005GM1EC1TOI5E11PSTD SSD today and give your industrial projects the dependable NVMe performance they deserve.
Frequently Asked Questions
Where can I buy SWISSBIT SFPC005GM1EC1TOI5E11PSTD?
You can click on the BUY or RFQ button to purchase SFPC005GM1EC1TOI5E11PSTD from an authorized SWISSBIT distributor.
How do I troubleshoot issues or seek technical support for part SFPC005GM1EC1TOI5E11PSTD?
You can download the SFPC005GM1EC1TOI5E11PSTD datasheet or visit the SWISSBIT website for support.
Who is the manufacturer of SFPC005GM1EC1TOI5E11PSTD?
SWISSBIT
