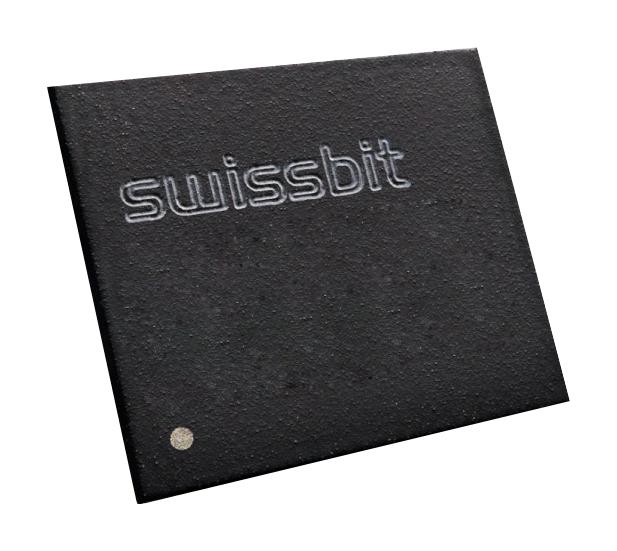

SWISSBIT SFEM032GB1EA1TOIHG12PSTD Embedded eMMC

The Swissbit embedded e-MMC is a high-performance, industrial-grade memory module supporting capacities from 2GB to 32GB. Fully compliant with JEDEC e-MMC 5.0 standards, it features a 153-ball BGA package, 0.5mm pitch, and a 11.5 x 13 mm form factor. Designed for rugged industrial environments, it includes wear leveling, power-fail data protection, and supports multiple bus speed modes up to HS400 at 200MHz. Ideal for embedded systems, POS, IoT, and automotive applications, ensuring reliable long-term operation from -40°C to 85°C.

Swissbit SFEM032GB1EA1TOIHG12PSTD – Reliable Embedded e-MMC for Industrial Applications
View SFEM032GB1EA1TOIHG12PSTDDatasheet [pdf]
Authorized Distributors
Source:Mouser Electronics
Part No:SFEM032GB1EA1TO-I-HG-12P-STD
Stock:0
Inv Date:06-16-2026
Price: Unit price: $219.81
Buy/RFQ:

SWISSBIT SFEM032GB1EA1TOIHG12PSTD Embedded eMMC Specifications:

  • Capacity: 2GB, 4GB, 8GB, 16GB, 32GB
  • Form Factor: 11.5 x 13 mm BGA, 153-ball, 0.5mm pitch
  • Package Dimensions: Length 13 mm, Width 11.5 mm, Thickness max. 1.0 mm
  • Temperature Range: -40°C to 85°C
  • Bus Interface: 11-wire (clock, Data Strobe, 1-bit command, 8-bit data), support for 1-bit, 4-bit, 8-bit modes
  • Maximum Clock Frequency: 200MHz in HS400 mode
  • Sequential Read: Up to 270MB/s; Sequential Write: Up to 160MB/s
  • Power Supply: VCC 2.7V-3.6V, VCCQ 1.7V-1.95V, VCCQ support limited in certain modes
  • Data Retention: 10 years at 40°C, 1 year at lifecycle end (20k PE cycles)
  • Reliability: Wear leveling, power-fail data protection, security features, extended operating life

Buy the Swissbit SFEM032GB1EA1TOIHG12PSTD – Reliable Embedded e-MMC for Industrial Applications

Order the Swissbit embedded eMMC memory module today and enhance your industrial system's storage with robust, high-speed, and reliable NAND flash technology. With capacities up to 32GB, supports multiple bus modes including HS400 at 200MHz, ideal for demanding applications like IoT, POS, and embedded industrial systems. Designed for extreme temperatures from -40°C to 85°C, it offers long data retention up to 10 years, wear leveling, power-fail protection, and firmware updates, ensuring longevity and data security for critical applications.

Buy Swissbit SFEM032GB1EA1TOIHG12PSTD now and experience unmatched reliability and performance in rugged industrial environments.

Frequently Asked Questions

Where can I buy SWISSBIT SFEM032GB1EA1TOIHG12PSTD?

You can click on the BUY or RFQ button to purchase SFEM032GB1EA1TOIHG12PSTD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFEM032GB1EA1TOIHG12PSTD?

You can download the SFEM032GB1EA1TOIHG12PSTD datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFEM032GB1EA1TOIHG12PSTD?

SWISSBIT
