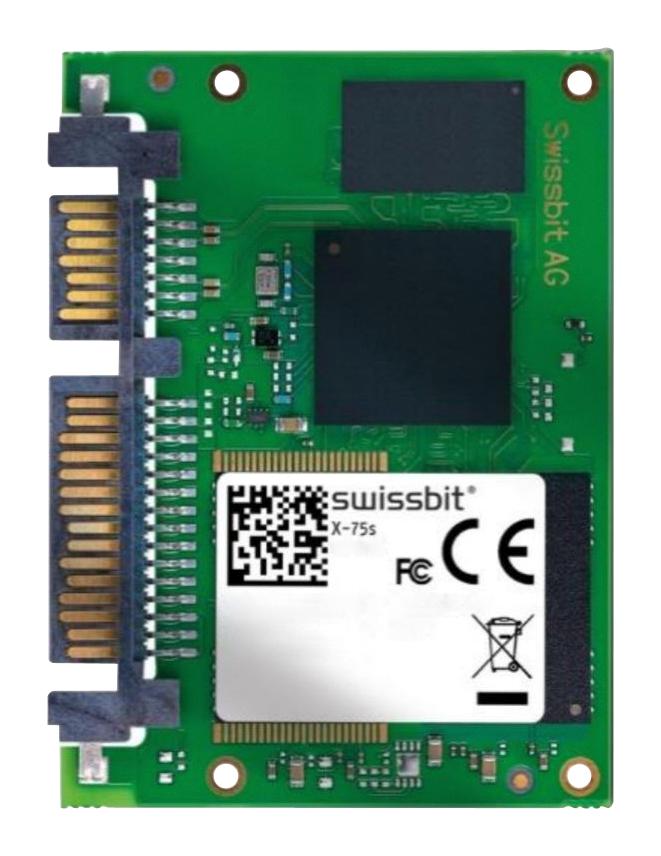

SWISSBIT SFSA030GV2AK1TOI5S236STD Industrial SATA SSD

The X-75s Series from Swissbit are high-performance, industrial-grade SATA SSDs with capacities up to 960 GBytes, supporting SATA Gen3 with 6 Gbit/s. They feature advanced NAND flash technology, including TLC 3D NAND, and offer sequential read speeds up to 565 MBytes/s and write speeds up to 495 MBytes/s. Designed for demanding environments, these drives operate within -40 °C to 85°C, with robust data integrity, power protection, and security features, making them ideal for industrial, embedded, and enterprise applications requiring durability, reliability, and speed in a compact form factor.

Buy Swissbit High-Performance SSD Part Number SFSA030GV2AK1TOI5S236STD Online
View SFSA030GV2AK1TOI5S236STDDatasheet [pdf]
Authorized Distributors
Source:Mouser Electronics
Part No:SFSA030GV2AK1TO-I-5S-236-STD
Stock:0
Inv Date:06-16-2026
Price: Unit price: $100.2
Buy/RFQ:

SWISSBIT SFSA030GV2AK1TOI5S236STD Industrial SATA SSD Specifications:

  • Form Factor: JEDEC MO-297 Slim SATA 54 mm x 39 mm x 4 mm
  • Capacities: 30 GBytes to 960 GBytes
  • Interface: SATA Gen3 supporting 6 Gbit/s, backward compatible with Gen2 and Gen1
  • Sequential Read Speed: Up to 565 MBytes/s
  • Sequential Write Speed: Up to 495 MBytes/s
  • Random Read IOPS: 73,600
  • Random Write IOPS: 79,400
  • Operating Temperature Range: 0°C to 70°C (commercial), -40°C to 85°C (industrial)
  • Storage Temperature: -40°C to 85°C
  • Operating Voltage: 5 V + 10%, 3.3 V (upon request)
  • Power Consumption: Active Read 2.7 W, Write 3.4 W; Idle 600 mW
  • Data Retention: 10 Years at start of life, 1 Year at end of life
  • Endurance: TBW over 3,240 (sequential), 310 (client), 770 (enterprise)
  • Shock/Vibration Resistance: 1500 g/50 g
  • NAND Flash Technology: TLC 3D NAND
  • Error Correction: LDPC ECC up to 165 bits per 1 KB
  • MTBF: > 2,000,000 hours
  • Data Reliability: <1 non-recoverable error per 10^15 bits read
  • Features: Wear leveling, bad block management, Power Fail Protection, TRIM, NCQ, AES256 encryption (optional), TCG OPAL 2.0 (optional), self-monitoring with S.M.A.R.T., E2E data protection

Buy the Buy Swissbit High-Performance SSD Part Number SFSA030GV2AK1TOI5S236STD Online

Purchase the Swissbit Industrial SATA SSD online today for unparalleled speed, durability, and data integrity. With capacities up to 960GB, 565MB/s sequential read, and 495MB/s write performance, it is suitable for rugged industrial and enterprise environments. Designed to operate from -40°C to 85°C, it ensures reliable performance in extreme conditions. Features like Power Fail Protection, LDPC ECC, and optional AES256 encryption safeguard your data. Experience quick, secure, and durable storage by ordering directly from trusted online suppliers now.

Buy Swissbit SFSA030GV2AK1TOI5S236STD now for industrial-grade performance, durability, and reliable storage solution ideal for demanding applications.

Frequently Asked Questions

Where can I buy SWISSBIT SFSA030GV2AK1TOI5S236STD?

You can click on the BUY or RFQ button to purchase SFSA030GV2AK1TOI5S236STD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFSA030GV2AK1TOI5S236STD?

You can download the SFSA030GV2AK1TOI5S236STD datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFSA030GV2AK1TOI5S236STD?

SWISSBIT
