SWISSBIT SFSA060GS2AK1TOI6B236STD Industrial SATA SSD

The Swissbit X-73 Series industrial 2.5-inch SATA SSD offers high-capacity, reliable data storage with support for SATA Gen3 (6 Gbit/s), AES encryption, and TCG OPAL compliance. Its rugged design includes a 15-pin gold-plated connector, enhanced power fail protection, and firmware support for in-field updates. Available in capacities up to 960 GB, it features optimized endurance, high IOPS, and compatibility with industrial environmental standards. Ideal for embedded and industrial applications requiring durable, high-performance non-volatile storage solutions.

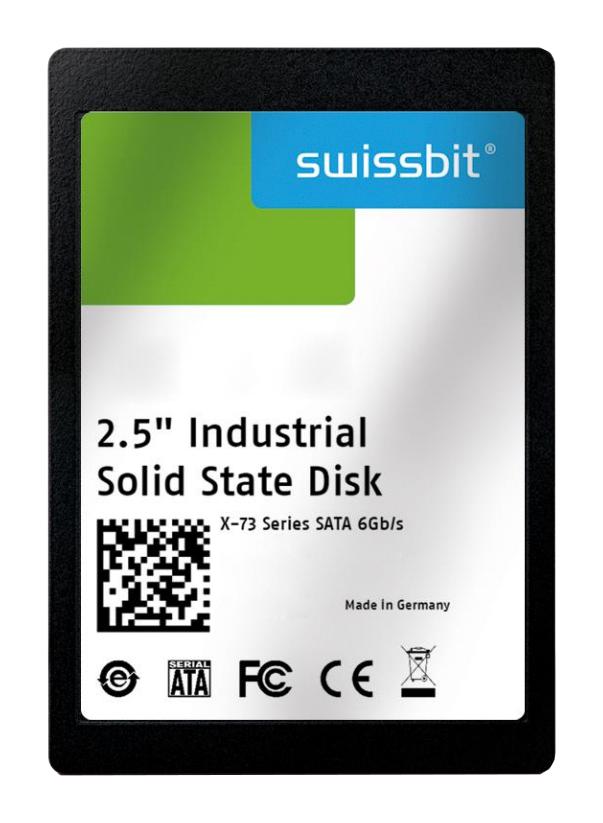

Swissbit Series X-73 SATA SSD: SFSA060GS2AK1TOI6B236STD
View SFSA060GS2AK1TOI6B236STDDatasheet [pdf]
Authorized Distributors
Source:Newark
Part No:SFSA060GS2AK1TO-I-6B-236-STD
Stock:7
Inv Date:06-15-2026
Price: Unit price: $152.16
Buy/RFQ:
Source:Mouser Electronics
Part No:SFSA060GS2AK1TO-I-6B-236-STD
Stock:0
Inv Date:06-16-2026
Price: Unit price: $136.46
Buy/RFQ:

SWISSBIT SFSA060GS2AK1TOI6B236STD Industrial SATA SSD Specifications:

  • Form Factor: 2.5 inch SATA Solid State Drive
  • Capacities: 30 GB, 60 GB, 120 GB, 240 GB, 480 GB, 960 GB
  • Dimensions: 100.3 mm x 69.9 mm x 7.0 mm
  • Weight: Max. weight varies by module
  • Interface: SATA Gen3 6 Gbit/s, backward compatible with SATA Gen2 and Gen1
  • Sequential Read: Up to 565 MBps for capacities 120 GB and above
  • Sequential Write: Up to 495 MBps for capacities 120 GB and above
  • Random Read 4K: Up to 73,600 IOPS (960 GB model)
  • Random Write 4K: Up to 79,400 IOPS (960 GB model)
  • Operating Temperature: -40°C to 85°C (Industrial), 0°C to 70°C (Commercial)
  • Power Consumption: Active read 2.7 W, Active write 3.4 W, Idle 0.6 W
  • MTBF: > 2,000,000 hours
  • Endurance: Up to 3,240 TBW for 960 GB capacity
  • Reliability: Data Retention 10 years (start), 1 year (end of life)
  • Compliance: RoHS, EMC, WEEE, REACH
  • Additional Features: Power fail protection, firmware update, AES256 encryption (on request), TCG OPAL (on request)

Buy the Swissbit Series X-73 SATA SSD: SFSA060GS2AK1TOI6B236STD

Secure your data with the Swissbit X-73 industrial SATA SSD, offering up to 960GB capacity, high read/write speeds, and rugged design suitable for harsh environments. Support for AES encryption, TCG OPAL, and firmware updates ensures data security and flexibility. Its industrial temperature range, power fail protection, and high endurance make it ideal for embedded, industrial, and mission-critical applications. Purchase online today to enhance your system's reliability, speed, and data security with a proven non-volatile storage solution.

Buy Swissbit X-73 SFSA060GS2AK1TOI6B236STD industrial SATA SSD now and experience unmatched reliability and performance in embedded environments.

Frequently Asked Questions

Where can I buy SWISSBIT SFSA060GS2AK1TOI6B236STD?

You can click on the BUY or RFQ button to purchase SFSA060GS2AK1TOI6B236STD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFSA060GS2AK1TOI6B236STD?

You can download the SFSA060GS2AK1TOI6B236STD datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFSA060GS2AK1TOI6B236STD?

SWISSBIT
