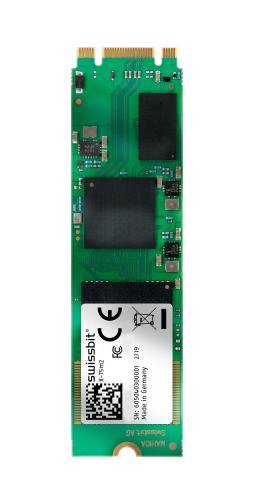

SWISSBIT SFSA080GM2AK4TOI6B62PSTD Industrial SSD

The Swissbit X-76m2 Series SSD is a high-performance M.2 SATA solid state drive utilizing TLC 3D NAND flash technology and PCIe interface support. Designed for embedded and industrial applications, it features a SATA Gen3 controller with sequential read/write speeds up to 560/480 MB/s, high endurance, and robust data security options including AES256 encryption and TCG Opal 2.0. The drive supports in-field firmware updates, power fail protection, and extensive reliability features like global wear leveling and bad block management. Available in capacities from 10 GB to 320 GB, it complies with relevant standards for industrial environments, with a temperature range of -40°C to 85°C, and measures approximately 42 mm x 22 mm x 3.58 mm.

Swissbit SFSA080GM2AK4TO – Reliable Industrial SATA SSD for Embedded Applications
View SFSA080GM2AK4TOI6B62PSTDDatasheet [pdf]
Authorized Distributors
Source:Mouser Electronics
Part No:SFSA080GM2AK4TO-I-6B-62P-STD
Stock:0
Inv Date:06-16-2026
Price: Unit price: $212.6
Buy/RFQ:

SWISSBIT SFSA080GM2AK4TOI6B62PSTD Industrial SSD Specifications:

  • Form Factor: PCI Express M.2 (2242/2280)
  • Capacities: 10, 20, 40, 80, 160, 320 GB
  • Interface: SATA Gen3, 6 Gbit/s
  • Sequential Read/Write: Up to 560/480 MB/s
  • Random Read/Write IOPS: Up to 74,000 / 84,900
  • Dimensions: 42 mm x 22 mm x 3.58 mm
  • Weight: Approx. 8-15 grams depending on capacity
  • Operating Voltage: 3.3V ±5%
  • Operating Temperature: -40°C to 85°C
  • Storage Temperature: -40°C to 85°C
  • MTBF: > 2,000,000 hours
  • Endurance: Up to 10,520 TBW depending on capacity
  • Compliance: SATA Gen3, JEDEC JESD47, RoHS, WEEE

Buy the Swissbit SFSA080GM2AK4TO – Reliable Industrial SATA SSD for Embedded Applications

Secure your data with the Swissbit SFSA080GM2AK4TO industrial SSD. Featuring high endurance, advanced security, and robust performance, this M.2 SATA drive is ideal for embedded systems and industrial environments. With capacities up to 320GB, support for AES256 encryption, Power Fail Protection, and compliance with industrial standards, it ensures data integrity and reliability even in harsh conditions. Easily order online and enhance your industrial storage with Swissbit’s proven quality and innovative features.

Buy Swissbit SFSA080GM2AK4TO now and experience unmatched reliability, security, and performance in industrial storage solutions.

Frequently Asked Questions

Where can I buy SWISSBIT SFSA080GM2AK4TOI6B62PSTD?

You can click on the BUY or RFQ button to purchase SFSA080GM2AK4TOI6B62PSTD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFSA080GM2AK4TOI6B62PSTD?

You can download the SFSA080GM2AK4TOI6B62PSTD datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFSA080GM2AK4TOI6B62PSTD?

SWISSBIT
