SWISSBIT SFSA120GM2AK2TOI6B536STD Industrial SSD

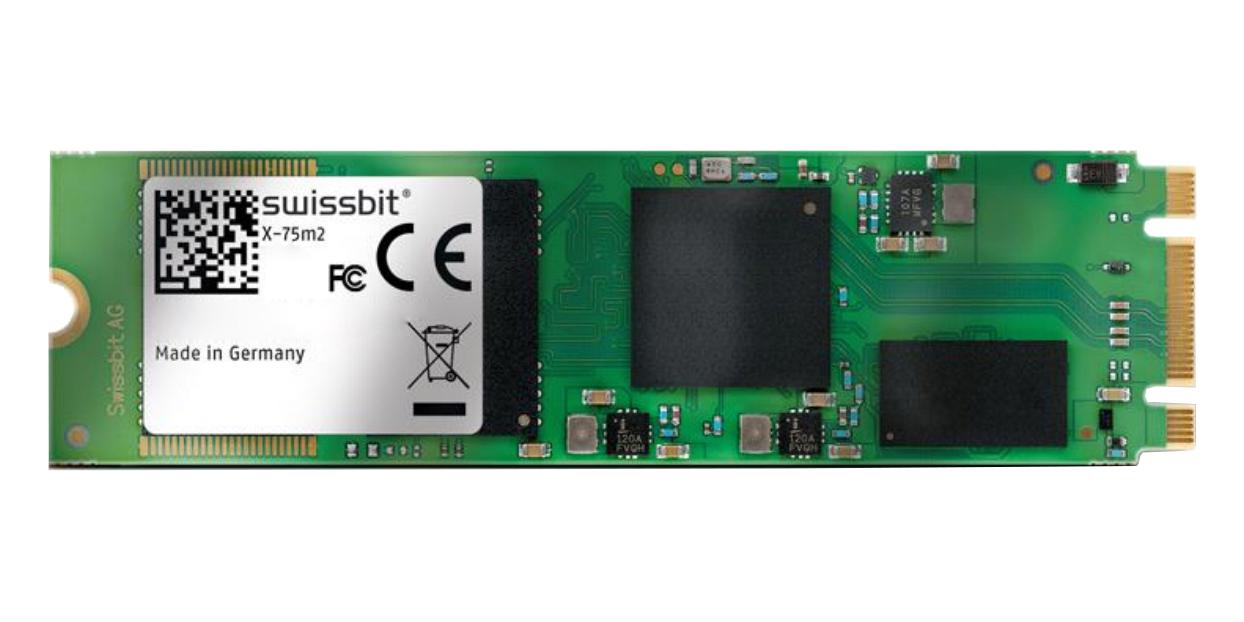

The Swissbit X-75m2 SSD is a robust M.2 SATA NVMe solution supporting SATA Gen3 speed up to 6 Gbit/s, with TLC 3D NAND flash technology, advanced data care, and security features. It features power fail protection, S.M.A.R.T. monitoring, and in-field firmware updates, ensuring high reliability, endurance, and data integrity for embedded and industrial applications. Available in various capacities and form factors, it combines high performance with compliance to industry standards, making it ideal for enterprise and rugged environments.
SWISSBIT SFSA120GM2AK2TOI6B536STD Industrial SSD Specifications:
- Form Factors: 2242 (42 mm x 22 mm x 3.58 mm), 2280 (80 mm x 22 mm x 3.58 mm)
- Capacities: 30 GBytes, 60 GBytes, 120 GBytes, 240 GBytes, 480 GBytes, 960 GBytes, 1920 GBytes
- Interface: SATA 6 Gbps (Gen3), backward compatible with Gen2 and Gen1
- Sequential Read: Up to 565 MB/s for capacities 120 GBytes and above
- Sequential Write: Up to 495 MB/s for capacities 120 GBytes and above
- Random Read (4K): Up to 73,600 IOPS for high-end capacities
- Random Write (4K): Up to 79,400 IOPS for capacities 120 GBytes and above
- Operating Temperature Range: -40°C to 85°C (Industrial), 0°C to 70°C (Commercial)
- Power Consumption: Max 3.0 W during active write, 2.3 W during read
- MTBF: Greater than 2,000,000 hours
- Data Retention: 10 years at 40°C, 1 year at end of life
- Endurance (TBW): Up to 6,487 TB for 1920 GBytes capacity
- Security: AES256, TCG OPAL 2.0 (optional, on request)
- Data Care: Wear leveling, bad block management, error correction, in-field firmware updates
- Compliance: SATA Gen3, JEDEC standards, RoHS-6
- Dimensions: 42 mm x 22 mm x 3.58 mm (2242), 80 mm x 22 mm x 3.58 mm (2280)
Buy the Swissbit Series M.2 SATA: SFSA120GM2AK2TOI6B536STD
Order the Swissbit SFSA120GM2AK2TOI6B536STD M.2 SATA SSD online today and experience high transfer speeds, secure data management, and exceptional durability. Designed for industrial and embedded applications, this SSD combines TLC NAND flash with advanced firmware features, including wear leveling and power fail protection, ensuring maximum reliability in demanding environments. Its compact 2280 form factor fits seamlessly into embedded systems, providing dependable performance, long-term data retention, and in-field firmware updates. Purchase now to secure resilient storage for your high-performance industrial workloads and mission-critical data.
Get Swissbit SFSA120GM2AK2TOI6B536STD today—built for high endurance, security, and industrial-grade reliability.
Frequently Asked Questions
Where can I buy SWISSBIT SFSA120GM2AK2TOI6B536STD?
You can click on the BUY or RFQ button to purchase SFSA120GM2AK2TOI6B536STD from an authorized SWISSBIT distributor.
How do I troubleshoot issues or seek technical support for part SFSA120GM2AK2TOI6B536STD?
You can download the SFSA120GM2AK2TOI6B536STD datasheet or visit the SWISSBIT website for support.
Who is the manufacturer of SFSA120GM2AK2TOI6B536STD?
SWISSBIT
