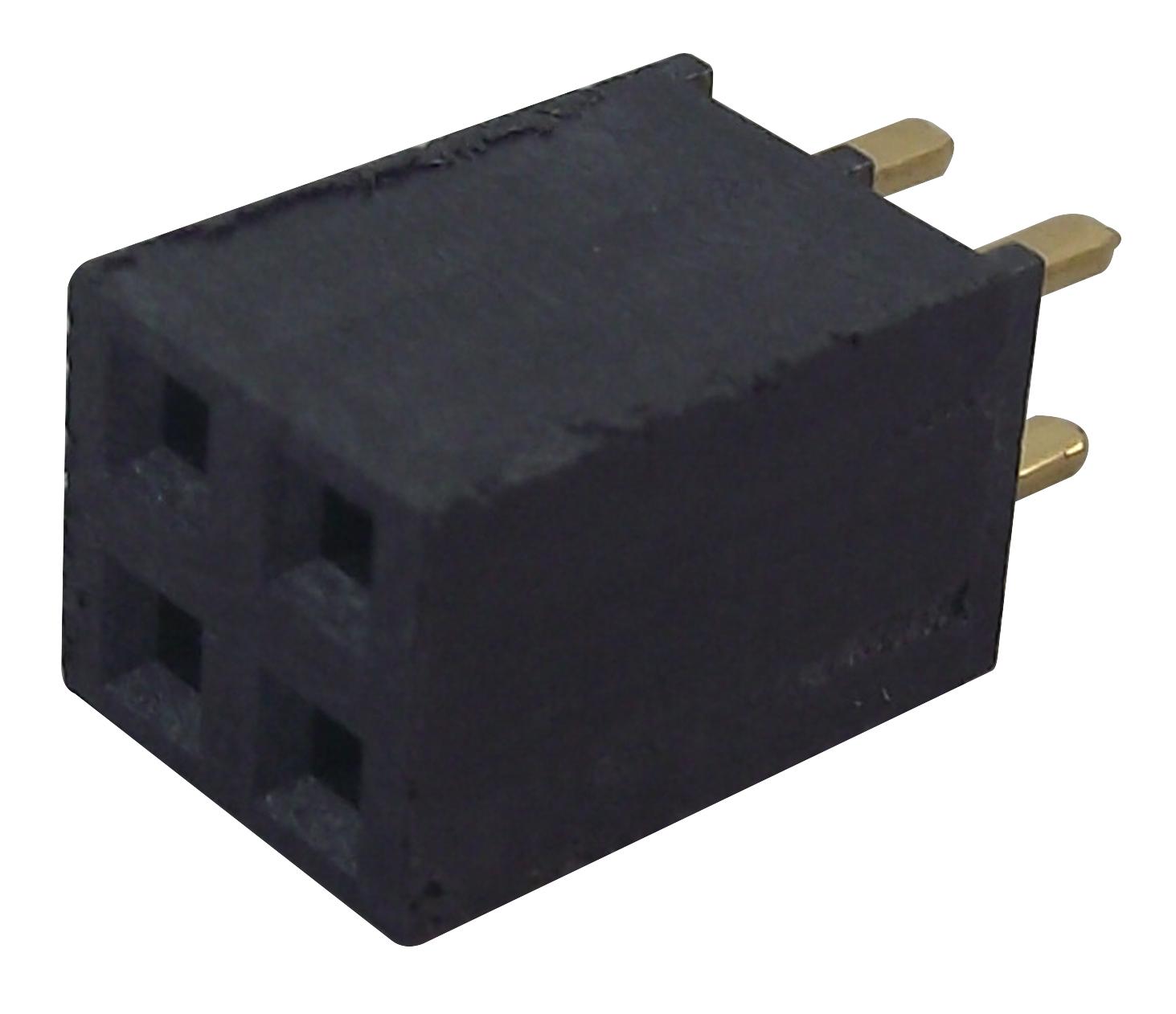

SAMTEC BCS102LDTE pass-through socket
The BCS Series TIGER CLAW pass-through socket offers reliable connection capabilities with gold or tin over phosphor bronze contacts. Made from black liquid crystal polymer insulator material, it supports current ratings up to 4.6 A per pin and operating voltage of 475 V. Designed for temperature ranges from -55°C to +125°C, it features easy insertion and withdrawal forces, RoHS compliance, and various options for lengths and plating. Compatible with multiple mating connectors, it’s ideal for high-reliability electronic and industrial applications requiring secure and efficient connectors.
SAMTEC BCS102LDTE pass-through socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin over 50u" (1.27u")
- Current Rating: 4.6 A per pin
- Operating Voltage: 475 VAC (-TELDE/-PE mated), 450 VAC (HE mated with TSW)
- Temperature Range: -55°C to +125°C
- Contact Resistance: 10 mΩ
- Insertion Depth: 4.34 mm (0.171") to 6.35 mm (0.250")
- Insertion Force: 5.02 oz (1.39 N) on average for 0.64 mm SQ pin
- Withdrawal Force: 3 oz (0.83 N) on average for 0.64 mm SQ pin
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
Buy the Samtec Series TIGER CLAW Pass-Through Socket: BCS102LDTE
Purchase the Samtec BCS102LDTE pass-through socket online today to ensure high-quality, durable connections for your electronic or industrial projects. This reliable connector features gold or tin plating over phosphor bronze contacts, supporting up to 4.6 A per pin and 475 V operation. Designed with black liquid crystal polymer insulation, it withstands temperatures from -55°C to +125°C. Ideal for applications requiring secure, RoHS-compliant, lead-free connections, making your assembly process efficient and dependable.
Buy Samtec BCS102LDTE now and experience unmatched reliability and performance in secure electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC BCS102LDTE?
You can click on the BUY or RFQ button to purchase BCS102LDTE from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BCS102LDTE?
You can download the BCS102LDTE datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BCS102LDTE?
SAMTEC
