SAMTEC BCS120FSTE Tiger Claw pass-through socket
The BCS120FSTE is a high-performance Tiger Claw pass-through socket designed for reliable electrical connections in demanding environments. Its black liquid crystal polymer insulator provides excellent thermal resistance, while phosphor bronze contacts with gold and nickel plating ensure long-lasting conductivity. Compatible with various mating components like TSW and TSM series, it supports current ratings up to 4.6 A per pin and operates efficiently within a temperature range of -55°C to +125°C. Ideal for complex electronics assemblies requiring secure, durable connections and RoHS compliance.
SAMTEC BCS120FSTE Tiger Claw pass-through socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Gold over 50 μ
- Ni
- Current Rating: 4.6 A per pin
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: 4.34 mm (0.171 inches) to 6.35 mm (0.250 inches)
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Compatibility: TSW, MTSW, HTSW, HMTSW, TSS, ZSS, DW, EW, ZW, HW, TSM series
- Dimensions: Typical insertion depth 4.34 mm, length variations available depending on model

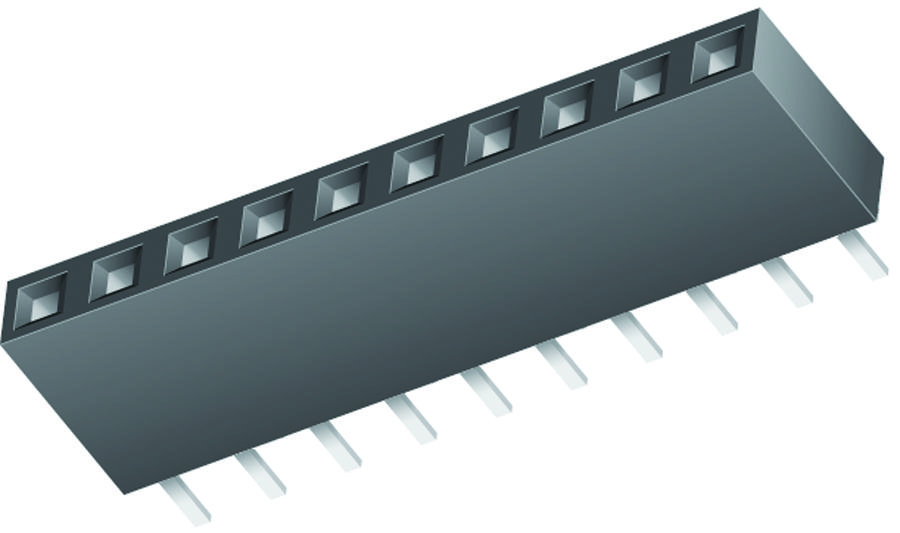

Buy the Buy Samtec BCS120FSTE Pass-Through Socket Part Number BCS120FSTE Online
Order the Samtec Tiger Claw pass-through socket BCS120FSTE online today to ensure secure, durable connections in your electronic assemblies. This socket features a black Liquid Crystal Polymer insulator, phosphor bronze contacts with gold and nickel plating, and supports currents up to 4.6 A per pin. Its operating temperature range extends from -55°C to +125°C, making it ideal for demanding environments. The socket is RoHS compliant, lead-free, and compatible with various mating series like TSW and TSM, offering flexibility and reliability for complex projects.
Buy Samtec BCS120FSTE now and experience reliable, high-quality electrical connections for demanding electronic applications.
Frequently Asked Questions
Where can I buy SAMTEC BCS120FSTE?
You can click on the BUY or RFQ button to purchase BCS120FSTE from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BCS120FSTE?
You can download the BCS120FSTE datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BCS120FSTE?
SAMTEC
