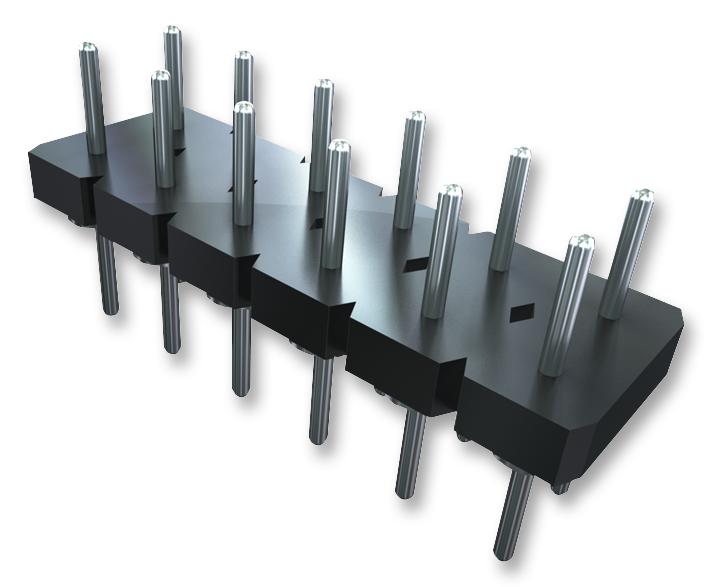

SAMTEC BDL116GF Board Stacking Strip Connector
The SAMTEC BDL-116-G-F is a machined board stacking strip connector designed to achieve low profile board spacings. It combines the reliability of a permanent connection with the flexibility of a separable connection. Constructed with materials like black glass filled polyester or high-temperature nylon, and available with gold or tin plating over nickel, this connector caters to a wide range of industrial applications requiring secure and space-efficient board stacking. Note that some lengths, styles, and options are non-standard and non-returnable.
SAMTEC BDL116GF Board Stacking Strip Connector Specifications:
- Mates with: SS, SD, HSS, SL, SDL
- Board Spacing: (3,89 mm) .153"
- Plating: Au or Sn over 50µ" (1,27 µm) Ni
- Insulator Material: Black Glass Filled Polyester (BBS, BBD, BBL) / Black High Temp Nylon (BDL) / Black Liquid Crystal Polymer (BHS)
- Terminal Material: Phosphor Bronze or Brass
- Temperature Range: -55°C to +125°C
- RoHS Compliant: Yes
- Lead-Free Solderable: Wave only (BBS, BBD, BBL, BDL) / Wave or reflow (BHS)
Buy the BDL-116-G-F SAMTEC Board Stacking Strip Connector | myMectronic
Securely purchase the SAMTEC BDL-116-G-F board stacking strip connector online today.
Buy Now
Frequently Asked Questions
Where can I buy SAMTEC BDL116GF?
You can click on the BUY or RFQ button to purchase BDL116GF from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BDL116GF?
You can download the BDL116GF datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BDL116GF?
SAMTEC
