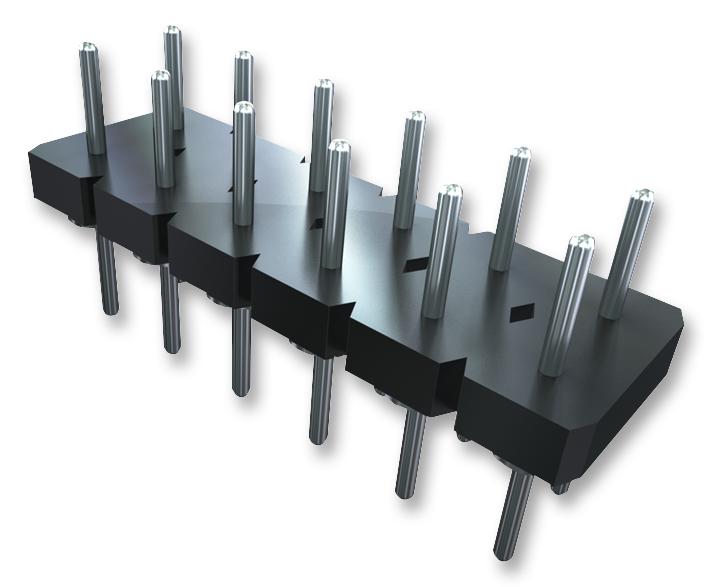

SAMTEC BDL135GF Board Stacking Strip
The BDL135GF is a machined board stacking strip designed for reliable, separable connections with a low-profile construction achieving 3.89 mm board spacings when mated with SL Series counterparts. Made from Black Liquid Crystal Polymer or Black Glass Filled Polyester, it can operate across -55°C to +125°C. Features include phosphor bronze or brass terminals with gold or tin plating over nickel, and are lead-free and solderable. Compatible with various connector series, it offers flexibility for precision electronic assemblies and high-reliability applications.
SAMTEC BDL135GF Board Stacking Strip Specifications:
- Insulator Material: Black Liquid Crystal Polymer (BBL, BHS), Black Glass Filled Polyester (BBS, BBD, BDL)
- Temperature Range: -55°C to +125°C
- Terminal Material: Phosphor Bronze or Brass
- Plating: Gold or Tin over 50 μ
- Ni
- Lead-Free Solderable: Yes (BBL, BDL, BHS-S), No (BBS, BBD, BHS-N)
- Number of Positions: 1 to 36 depending on series
- Body Styles: E & F available for BBL and BDL
- Board Spacing: 3.89 mm (.153 inch) achieved with SL series mating
- Series Compatibility: BBS, BBL, BHS, BBD, BDL
- Max Current Capability: Not specified in description
- Dimensions: 2.54 mm (0.100 inch) pin pitch, length varies per model
- Temperature Rating: -55°C to +125°C
- Design: Machined, low-profile for space efficiency
- Certifications: Recognized under SAMTEC quality standards
Buy the Buy Samlec Series BDL135GF Machined Board Stacking Strip Part Number BDL135GF Online
Discover the high-quality, machined board stacking strip designed for precise, reliable, and space-saving electronic connections. The BDL135GF features a low-profile design with a 3.89 mm board spacing when paired with SL series counterparts, ideal for compact assemblies. Constructed from durable materials with high-temperature tolerance, it offers excellent electrical performance in demanding environments. Solderable and lead-free, this versatile connector series ensures your projects meet strict quality standards. Purchase online today to improve your electronic system reliability and design flexibility with this dependable component.
Order your Samlec Series BDL135GF machined board stacking strip today and enhance your electronic projects with this reliable, space-efficient connection solution.
Frequently Asked Questions
Where can I buy SAMTEC BDL135GF?
You can click on the BUY or RFQ button to purchase BDL135GF from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BDL135GF?
You can download the BDL135GF datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BDL135GF?
SAMTEC
