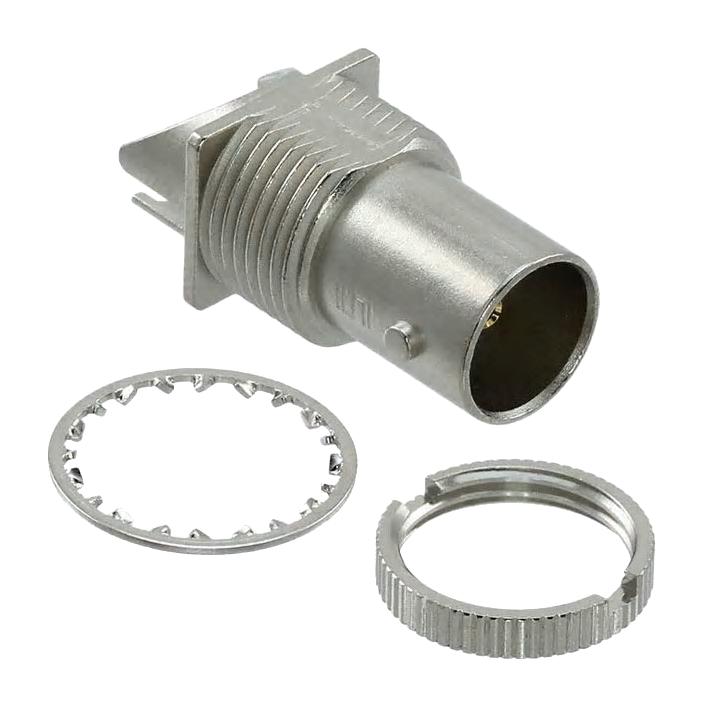

SAMTEC BNC7TJPGNSTEM1D RF Coaxial Connector
The BNC7T series is designed for high-frequency RF applications, meeting SMPTE 2082 12G-SDI standards with impedance of 75Ω and operating bandwidth up to 12 GHz. Constructed with zinc shell and PTFE insulators, these connectors withstand voltages up to 500 V rms and temperatures from -55°C to +125°C. They feature crimped outer ferrules, RoHS compliance, and lead-free solderability. Ideal for broadcast, professional video, and industrial RF systems, they are quick to install using specialized tools, ensuring secure connections and reliable performance in demanding environments.
SAMTEC BNC7TJPGNSTEM1D RF Coaxial Connector Specifications:
- Shell Material: Zinc
- Contact Material: Copper Alloy with Plating
- Insulator Material: PTFE
- Impedance: 75Ω
- Working Voltage: 500 V rms
- Dielectric Withstanding: 1500 V rms minimum
- Operating Temperature: -55°C to +125°C
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Cable Compatibility: RG 179, 1694A
- Frequency Range: 0-12 GHz
- Outer Ferrule: Crimped
- Dimensions: Compatibility with PCB mount, panel mount options, various length models
Buy the Samtec BNC7T-EM – Reliable RF Connectors for Industrial Applications
Enhance your RF and broadcast setups with our high-frequency coaxial connectors. Designed for 12G-SDI and professional video, these connectors feature zinc shells, PTFE insulators, and impedance of 75Ω. They withstand voltages up to 500 V rms and temperatures from -55°C to +125°C, ensuring reliable performance in demanding environments. Quick to install with specialized tools, our connectors offer secure, robust connections for industrial, broadcast, and professional applications. Purchase online today for quality, durability, and seamless integration.
Get Samtec BNC7T-EM today—built for precision and long-lasting durability in RF and video broadcast systems.
Frequently Asked Questions
Where can I buy SAMTEC BNC7TJPGNSTEM1D?
You can click on the BUY or RFQ button to purchase BNC7TJPGNSTEM1D from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BNC7TJPGNSTEM1D?
You can download the BNC7TJPGNSTEM1D datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BNC7TJPGNSTEM1D?
SAMTEC
