SAMTEC BSH03001LDA High-Density PCB Connector
The BSH03001LDA is a compact, high-reliability connector designed for PCB applications. It features a black LCP insulator, phosphor bronze contacts with gold or tin plating over nickel, and supports a current rating of 2 A per pin. Suitable for operating temperatures from -55°C to +125°C, it has a voltage rating of 275 VAC and withstands up to 100 mating cycles. The connector supports SMT lead coplanarity and offers various stack heights, including 8 mm, 11 mm, 16 mm, 19 mm, and 22 mm, with edge mount capability for versatile assembly solutions.
SAMTEC BSH03001LDA High-Density PCB Connector Specifications:
- Insulator Material: Black LCP
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" Ni
- Current Rating: 2 A per pin
- Voltage Rating: 275 VAC
- Operating Temperature Range: -55°C to +125°C
- Max Cycles: 100
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.10 mm (.004") to 0.15 mm (.006")
- Stack Height Options: 8 mm, 11 mm, 16 mm, 19 mm, 22 mm
- Edge Mount Capability
- Contact Plating: 30!" (0.76 um) Gold or 50u" (1.27 um) Nickel
- Mechanical Compatibility: Supports applications requiring more than two connectors or 90 positions
- Durability: Up to 100 mating cycles
- Certifications: UL 94V-0
- Application notes: Suitable for high-density PCB connections with flexible stacking and mounting options

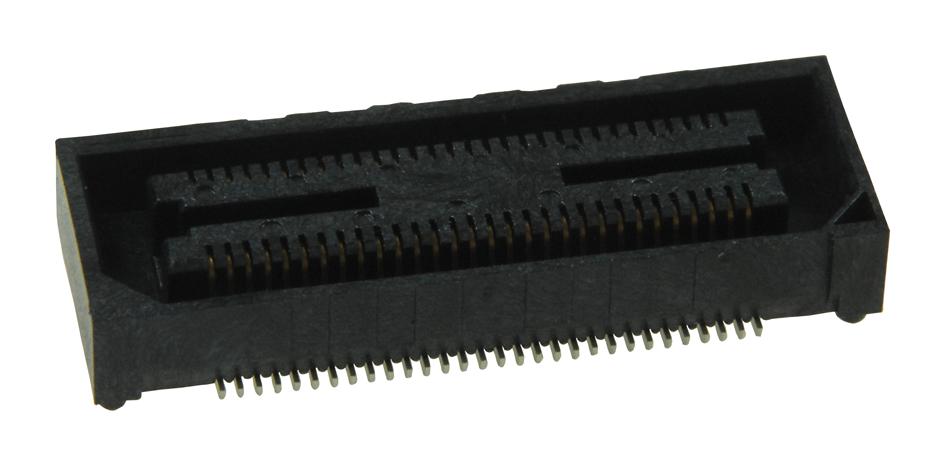

Buy the Buy Samtec BSH-030-01-L-D-RA-WT High-Reliability PCB Connector Part Number BSH03001LDA Online
Purchase the Samtec BSH-030-01-L-D-RA-WT connector online today and enjoy fast delivery and secure shopping. This high-reliability connector features gold or tin plating, supporting 2A current, operating at voltages up to 275 VAC. Designed for PCB applications, it offers multiple stack heights including 8 mm, 11 mm, 16 mm, 19 mm, and 22 mm, with edge mount capability. Its robust construction ensures up to 100 mating cycles, making it ideal for high-density, durable electronic connections in complex assemblies.
Buy Samtec BSH-030-01-L-D-RA-WT now and experience unmatched reliability and performance with versatile mounting options for your PCB needs.
