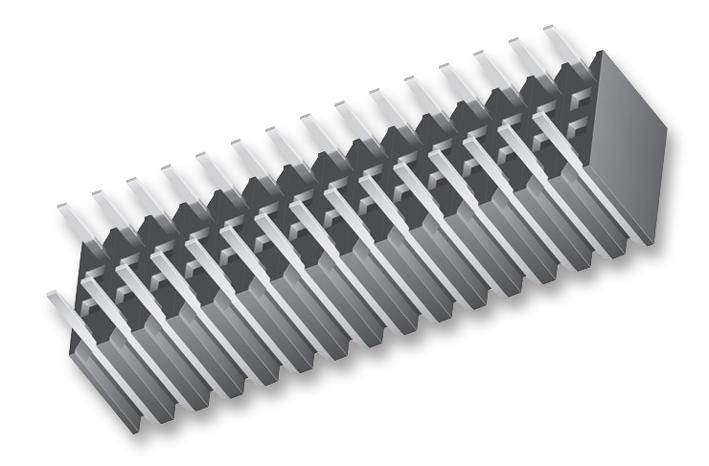

SAMTEC BSW11604TD Bottom Mount Socket Strip
The SAMTEC BSW series bottom mount socket strips are designed for robust connections and ease of use. These strips accept .025" SQ terminals and are ideal for applications requiring soldering and plugging from the side of the board. They offer low-profile connections and are suitable for high-temperature soldering. The insulator is black thermoplastic with standoffs, and the strips are RoHS compliant and lead-free solderable via wave soldering. Various plating options are available, including gold flash and matte tin, to meet specific application requirements. Please consult Samtec's website for complete specifications and recommended PCB layouts.
SAMTEC BSW11604TD Bottom Mount Socket Strip Specifications:
- Mates with: TSW, MTSW, HTSW, BSW
- Insulator Material: Black Thermoplastic .015" with standoffs
- Insulation Resistance: 5000 MΩ min
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50µ" Ni
- Operating Temp Range: -55°C to +125°C (with Gold), -55°C to +105°C (with Tin)
- Withstanding Voltage: 1000 VRMS @ 60 Hz
- Contact Resistance: 10 mΩ
- Insertion Depth: (3,68 mm) .145" to (6,35 mm) .250"
- Standard Insertion Force: 8 oz (2,23 N) avg. (Single contact only)
- Low Insertion Force: 3 oz (0,83 N) avg. (Single contact only)
- Withdrawal Force: 8 oz (2,23 N) avg. (Single contact only) Standard, 3 oz (0,83 N) avg. Low Insertion Force (Single contact only)
