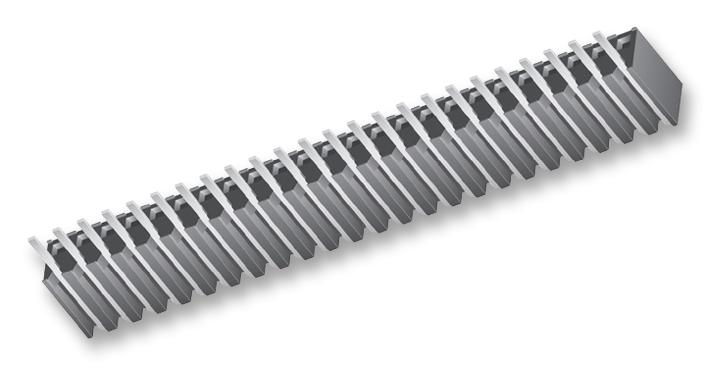

SAMTEC BSW12704SS Socket Strip
The BSW series from Samtec features bottom mount socket strips designed for through-hole mounting in low-profile applications. Built with black thermoplastic insulators and phosphor bronze contacts, these sockets support high temperatures from -55°C to 125°C when gold-plated, while offering solid contact resistance of 10 milliohms. Compatible with various Samtec series, they feature 0.025-inch square posts, solder tails, and optional standoffs for single or double-row configurations. Ideal for soldering and plugging from the same side, these rugged sockets are perfect for industrial, automation, and electronics manufacturing projects, ensuring reliable connections in tight spaces.
SAMTEC BSW12704SS Socket Strip Specifications:
- Insulator Material: Black Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50µ
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Withstanding Voltage: 1000 VRMS @ 60 Hz
- Contact Resistance: 10 milliohms
- Insertion Depth: 0.145" to 0.250" (3.68mm to 6.35mm)
- Insertion Force: Standard 8 oz (2.23 N), Low Insertion 3 oz
- Withdrawal Force: Standard 8 oz (2.23 N), Low 3 oz
- Current Rating: Recommended current per contact varies
- Compatibility: Accepts 0.025 inch (0.635mm) square terminals
- Configuration: Single and dual-row options, 2 to 36 contacts
- Standards: UL E111594, CSA 090871
- Packaging: Non-standard lengths and styles may be non-returnable
Buy the Samtec Series BSW Socket Strips: BSW12704SS
Discover the high-quality Samtec Series BSW socket strips, engineered for reliable PCB connections in tight spaces. Featuring 0.025-inch posts, high-temperature tolerance, and optional standoffs, these socket strips are perfect for soldering and plugging from the same side. Suitable for industrial, automation, and electronic manufacturing needs, they offer excellent contact resistance and durability, ensuring long-lasting performance. Purchase online today to enhance your projects with dependable, low-profile connectors designed for high-temperature soldering and rugged applications.
Order your Samtec Series BSW socket strips today and ensure reliable, low-profile PCB connections for your industrial and electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC BSW12704SS?
You can click on the BUY or RFQ button to purchase BSW12704SS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BSW12704SS?
You can download the BSW12704SS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BSW12704SS?
SAMTEC
