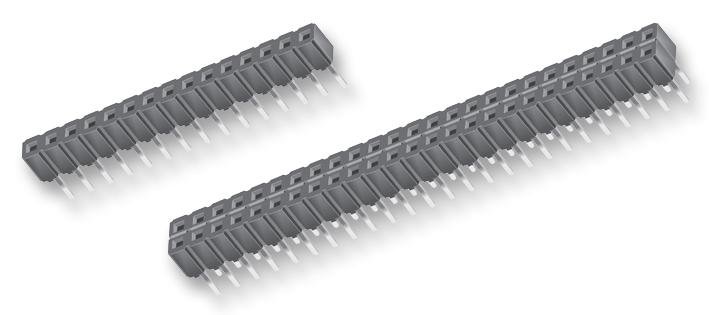

SAMTEC CES12502GD Socket Strip
The CES series from Samtec offers low-profile, closed-entry socket strips ideal for through-hole mounting in various electronic applications. These versatile connectors support single or dual row configurations with a 2.54mm pitch, accommodating 1 to 50 contacts per row, and feature straight orientation for easy installation. They are constructed from black G.F. polyester insulators with phosphor bronze contacts, plated with gold or tin for durability. Rated for 400VAC, operating from -55°C to 125°C, with a contact resistance of 10 milliohms, they are compliant with UL and CSA standards, ensuring reliable, high-quality connections in industrial environments.
SAMTEC CES12502GD Socket Strip Specifications:
- Pitch spacing: 2.54 mm (0.100 inch)
- Contact Material: Phosphor Bronze
- Insulator Material: Black G.F. Polyester
- Plating Options: Gold or Tin over 50u" Ni
- Voltage Rating: 400 VAC
- Operating Temperature: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- Contact Resistance: 10 milliohms
- Insertion Depth: 2.16 mm to 4.08 mm
- Number of contacts per row: 1 to 50
- Configuration: Single or Dual row options, straight orientation
- Standards: UL E111594, CSA 090871
- Compatible with various Samtec connector series
Buy the Samtec Series CES Socket Strips: CES12502GD
Enhance your electronic assemblies with Samtec Series CES socket strips, designed for high reliability and durability. These low-profile, closed-entry connectors feature gold or tin plating, supporting up to 50 contacts per row in single or dual configurations. Crafted from black G.F. polyester insulators and phosphor bronze contacts, they operate safely at voltages up to 400VAC and withstand temperature ranges from -55°C to 125°C. Perfect for industrial applications, they meet UL and CSA standards, ensuring optimal performance and compliance.
Order your Samtec Series CES socket strips today and ensure reliable, high-quality connections for your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC CES12502GD?
You can click on the BUY or RFQ button to purchase CES12502GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CES12502GD?
You can download the CES12502GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CES12502GD?
SAMTEC
