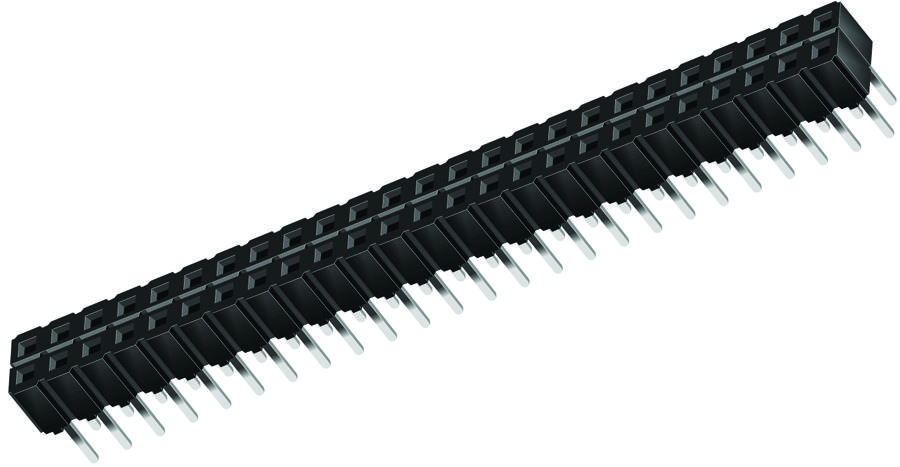

SAMTEC CES13202SD Socket Strip Connector
The SAMTEC CES-132-02-S-D is a low-profile socket strip connector designed for use in edge card applications. Constructed with a black G.F. Polyester insulator and phosphor bronze contacts, this connector provides reliable electrical connections. It features a current rating of 5.5A per pin (with two pins powered) and a voltage rating of 400 VAC. The connector is RoHS compliant and suitable for operating temperatures ranging from -55°C to +125°C (with gold plating) or -55°C to +105°C (with tin plating). It mates with TLW, TSW, MTLW, MTSW, HW, EW, ZW, HTSW, and SLW connectors, making it versatile for various system designs. Available with different plating options, including gold flash, 10µ” gold, or matte tin, to meet specific application requirements.
SAMTEC CES13202SD Socket Strip Connector Specifications:
- Material: Insulator: Black G.F. Polyester, Contact: Phosphor Bronze
- Plating: Gold flash, 10 µ" Gold, Matte Tin
- Current_Rating: 5.5 A per pin (2 pins powered)
- Voltage_Rating: 400 VAC
- Operating_Temp_Range_Gold: -55 °C to +125 °C
- Operating_Temp_Range_Tin: -55 °C to +105 °C
- Insertion_Depth_CES: (2.62 mm) .103" to (4.06 mm) .160"
- RoHS_Compliant: Yes
- Lead_Free_Solderable: No, Lead Wave only
- Mates_with: TLW, TSW, MTLW, MTSW, HW, EW, ZW, HTSW, SLW
Buy the CES-132-02-S-D SAMTEC Socket Strip Connector | myMectronic
Securely purchase the SAMTEC CES-132-02-S-D Socket Strip Connector online for reliable and efficient component sourcing.
Buy Now
Frequently Asked Questions
Where can I buy SAMTEC CES13202SD?
You can click on the BUY or RFQ button to purchase CES13202SD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CES13202SD?
You can download the CES13202SD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CES13202SD?
SAMTEC
