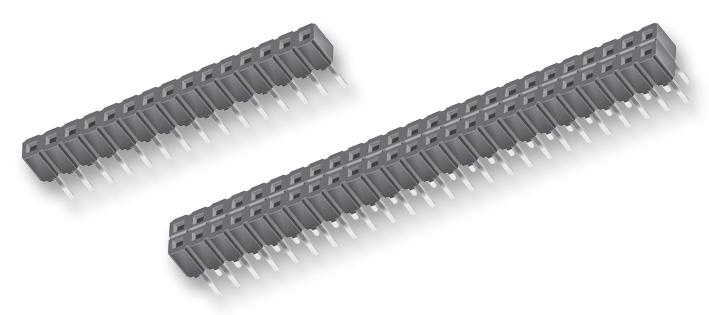

SAMTEC CES13202TS Low Profile Socket Strip
The SAMTEC CES series socket strips offer a low-profile solution for a variety of electronic applications. These connectors are designed to mate with TLW, TSW, MTLW, MTSW, HW, EW, ZW, HTSW, HMTSW, and TSM series connectors. Available with gold flash or matte tin plating, they provide excellent electrical performance and durability. The CES series is suitable for applications in industrial equipment, telecommunications, and consumer electronics, where space is limited and reliable connections are essential. They support current ratings up to 5.5A per pin and voltage ratings up to 400VAC, and operate within a temperature range of -55°C to +125°C (with gold plating).
SAMTEC CES13202TS Low Profile Socket Strip Specifications:
- Material: Black G.F. Polyester
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50µ” Ni
- Current Rating (SLW/TSW): 5.2 A per pin
- Current Rating (TSW/CES): 5.5 A per pin
- Voltage Rating (SLW): 406 VAC
- Voltage Rating (CES): 400 VAC
- Operating Temperature: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- Contact Resistance: 10 mΩ
- Insertion Depth (SLW): (2.16 mm) .085" to (2.92 mm) .115"
- Insertion Depth (CES): (2.62 mm) .103" to (4.06 mm) .160"
- Insertion Force (SLW): (3.34 N) 12 oz avg.
- Insertion Force (CES): (2.22 N) 8 oz avg.
- Withdrawal Force (SLW): (1.67 N) 6 oz avg.
- Withdrawal Force (CES): (1.11 N) 4 oz avg.
- RoHS Compliant: Yes
- Lead-Free Solderable: Wave only
- Mates With: TLW, TSW, MTLW, MTSW, HW, EW, ZW, HTSW, HMTSW, TSM
Buy the CES-132-02-T-S SAMTEC Low Profile Socket Strip | myMectronic
Purchase the SAMTEC CES-132-02-T-S socket strip securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy SAMTEC CES13202TS?
You can click on the BUY or RFQ button to purchase CES13202TS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CES13202TS?
You can download the CES13202TS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CES13202TS?
SAMTEC
