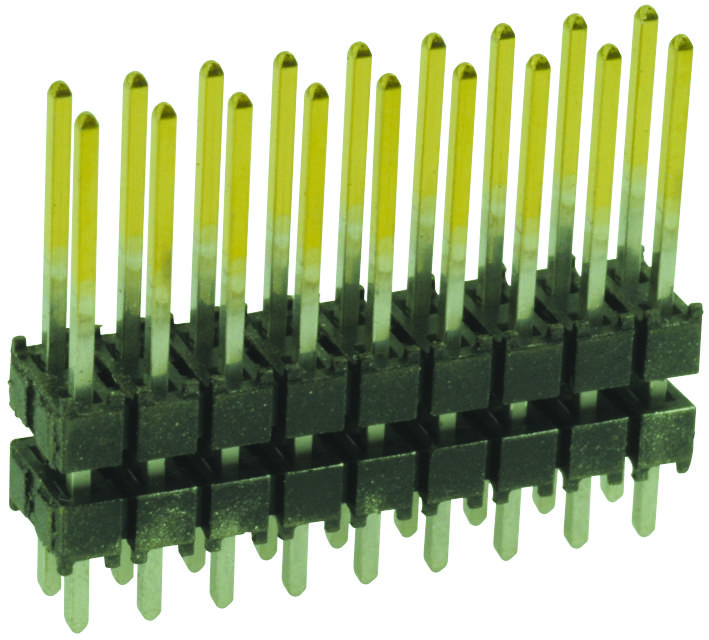

SAMTEC DW0509SD315 Flexible Board Stacker
SAMTEC's DW series flexible board stackers provide a reliable solution for connecting boards in a variety of applications. These stackers feature a flexible design that accommodates slight misalignments and vibrations. Available with different lead styles, plating options (gold or tin), and stacker heights, they cater to a wide range of design requirements. They are RoHS compliant and suitable for lead-free soldering processes. For optimal performance and mechanical stability, Samtec recommends using mechanical board spacers, especially with gold-plated connectors. Contact Samtec for custom tail options and other plating requirements.
SAMTEC DW0509SD315 Flexible Board Stacker Specifications:
- Mates with: SSW, SSQ, ESW, ESQ, CES, SLW, BSW, BCS, SSM, HLE, PHF
- Operating Temp Range: -55 °C to +125 °C (Gold), -55 °C to +105 °C (Tin)
- RoHS Compliant: Yes
- Lead Free Solderable: DW, EW, ZW: No (Lead Wave Only), HW: Yes
- Insulator Material: DW, EW, ZW: Black Glass Filled Polyester, HW: Natural Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over 50 µ" (1.27 µm) Ni
- Tail Length: (2.54) .100"
- Stacker Height: (5.08) .200"
- Overall Length: (8.38) .330"
- No. of Pins per Row: Specify LEAD STYLE
- OAL: (10.92) .430"
- Row Height: (6.35) .250"
- Stacker Options: –S, –T, –Q
- File No: E111594
